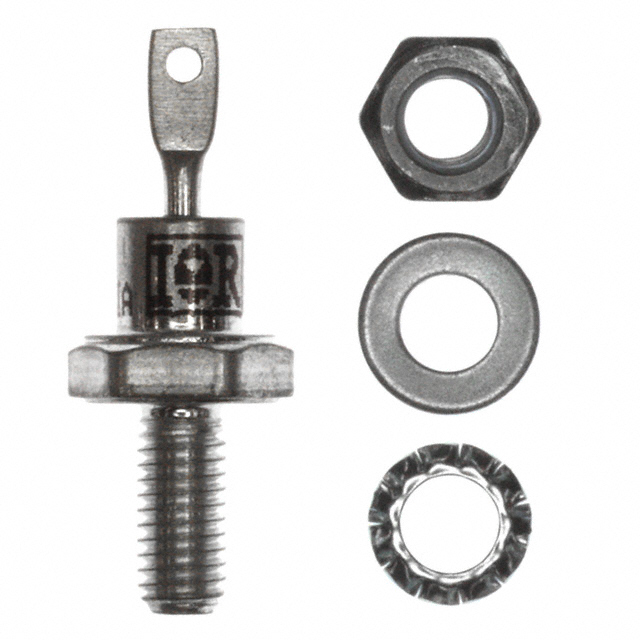

VS-16FL20S02

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 200V 16A DO203AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 200V 16A DO203AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-16FL20S02

Current - Average Rectified (Io)	16 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Reverse Recovery Time (trr)	200 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-203AA
Supplier Device Package	DO-4
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Speed	Supplier Device Package	Supplier Device Package	Technology	Package / Case	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type
Vishay General Semiconductor - Diodes Division VS-16FL20S02	200 mA 500 ns	DO-203AA	DO-4	Standard	DO-203AA DO-4 Stud	50 µA	200 ns	1.4 V	150 °C	-65 C	200 V	16 A	Chassis Stud Mount
Vishay General Semiconductor - Diodes Division VS-16FL20S05	200 mA 500 ns	DO-203AA	DO-4	Standard	DO-203AA DO-4 Stud	50 µA	500 ns	1.4 V	150 °C	-65 C	200 V	16 A	Chassis Stud Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.92

General part information

Diode 200 V 16A Chassis, Stud Mount DO-203AA (DO-4)
