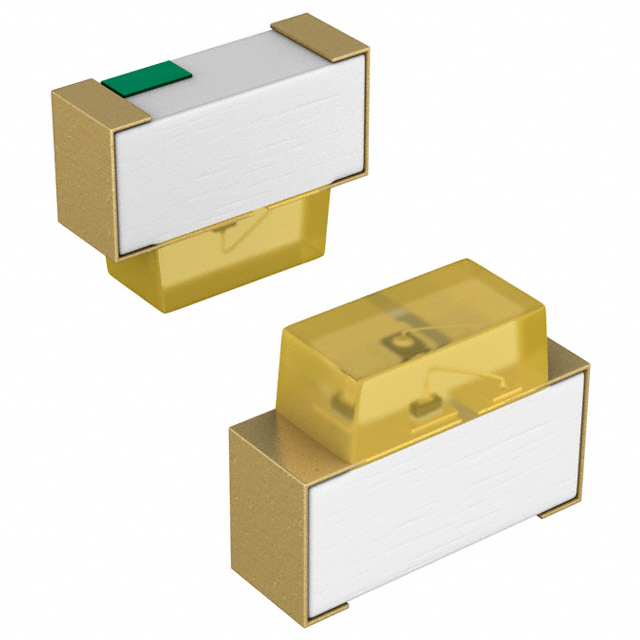

SML-A15YTT86
ActiveRohm Semiconductor
LED SINGLE CHIP YELLOW 590NM 20MA 2-PIN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
SML-A15YTT86
ActiveRohm Semiconductor
LED SINGLE CHIP YELLOW 590NM 20MA 2-PIN SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-A15YTT86 |
|---|---|
| Color | Yellow |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.55 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 230 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.15 mm |
| Supplier Device Package | 1611(0605) |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 10 | $ 0.35 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.13 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.11 | |||
Description
General part information
SML-A15YT Series
SML-A1 series is a small side-emitting chip LED.
