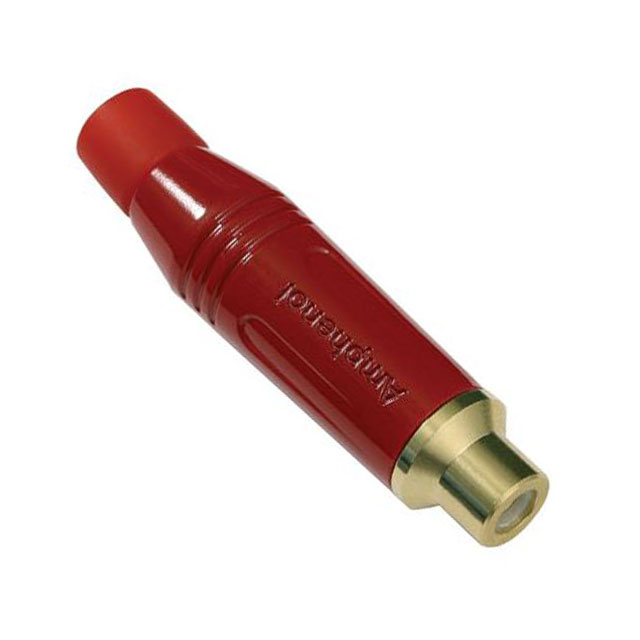

ACJR-RED

Active

AMPHENOL AUDIO

CONN RCA JACK RED

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCA JACK RED

Technical Specifications

Parameters and characteristics for this part

Specification	ACJR-RED

Body Color	Red
Body Material	Zinc Alloy
Connector Type	Phone Jack
Contact Material - Plating [custom]	Gold
Gender	Female
Housing Material	Plastic
Internal Switch(s)	False
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder, Solder Cup

Part	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Termination	Contact Material - Plating [custom]	Gender	Mounting Type	Body Material	Body Color	Connector Type	Signal Lines	Shielding	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL AUDIO ACJR-GRN	2	2	Plastic	Solder Solder Cup	Gold	Female	Free Hanging (In-Line)	Zinc Alloy	Green	Phone Jack	Mono	Unshielded	-25 °C	75 ░C
AMPHENOL AUDIO ACJR-RED	2	2	Plastic	Solder Solder Cup	Gold	Female	Free Hanging (In-Line)	Zinc Alloy	Red	Phone Jack	Mono	Unshielded	-25 °C	75 ░C
AMPHENOL AUDIO ACJR-BLK	2	2	Plastic	Solder Solder Cup	Gold	Female	Free Hanging (In-Line)	Zinc Alloy	Black Silver	Phone Jack	Mono	Unshielded	-25 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phone Jack Mono Connector Solder Cup, Solder
