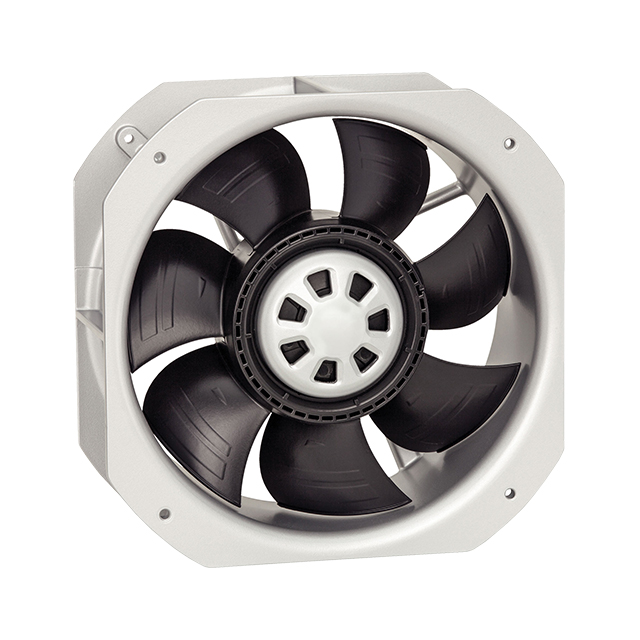

W3G200-HD23-10

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 115V 100V TO 130V 623CFM 225 X 225 X 80MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 115V 100V TO 130V 623CFM 225 X 225 X 80MM

Technical Specifications

Parameters and characteristics for this part

Specification	W3G200-HD23-10

Air Flow	623 CFM
Air Flow	17.44 mł/min
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Polypropylene (PP)
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	65 W
RPM	2900 RPM
Size / Dimension	Square
Size / Dimension [x]	225 mm
Size / Dimension [z]	225 mm
Static Pressure	94.6 Pa
Static Pressure	0.38 in H2O
Termination	Terminal Block
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	100 VAC
Weight	1.7 kg
Weight	3.7 lbs
Width [y]	80 mm

Part	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	RPM	Width [y]	Ingress Protection	Fan Type	Material - Blade	Static Pressure	Static Pressure	Air Flow	Air Flow	Voltage - Rated	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Features	Termination	Bearing Type	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Weight	Weight
ebm-papst Inc. W3G200-HD23-10	Square	225 mm	225 mm	2900 RPM	80 mm	IP54 - Dust Protected Water Resistant	Tubeaxial	Polypropylene (PP)	94.6 Pa	0.38 in H2O	623 CFM	17.44 mł/min	115 VAC	CE cURus VDE	130 VAC	100 VAC	Electronic Commutation (EC)	Terminal Block	Ball	Aluminum	-25 °C	60 °C	65 W	1.7 kg	3.7 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 225mm L x 225mm H Ball 623.0 CFM (17.44mł/min) Terminal Block
