0197124001
ActiveMolex

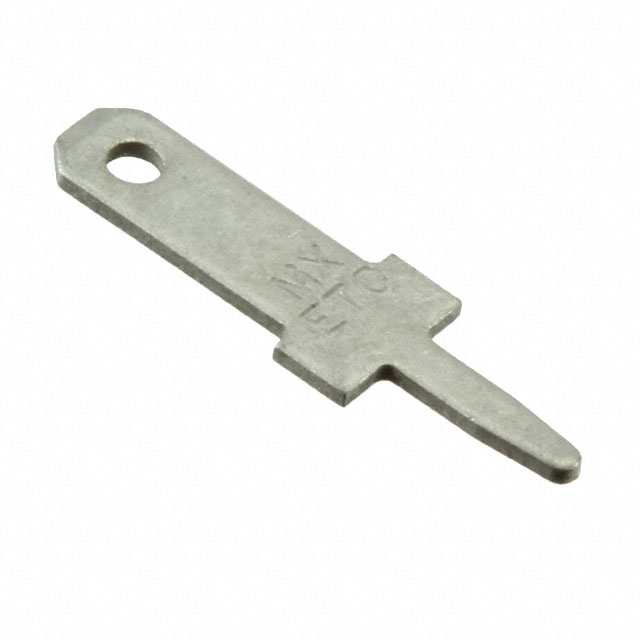

QUICK DISCONNECT TERMINAL BRASS M 13.89MM TIN BAG
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0197124001
ActiveMolex
QUICK DISCONNECT TERMINAL BRASS M 13.89MM TIN BAG
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0197124001 |
|---|---|
| Contact Finish | Tin-Lead |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.362 in |
| Length - Overall [x] | 9.19 mm |
| Mounting Type | Through Hole |
| Tab Length | 0.287 in |
| Tab Length | 7.3 mm |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
019712 Series
0.110" (2.79mm) Quick Connect Male Solder Connector Non-Insulated
