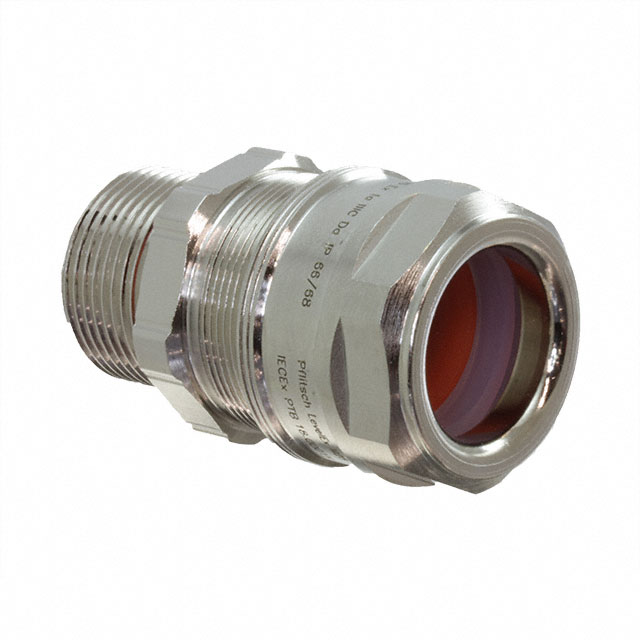

LEX225MSHTS

Active

Pflitsch

CABLE GLAND 12.45-20.07MM M25

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 12.45-20.07MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	LEX225MSHTS

Color	Silver
Includes	O-Ring
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.79 in
Outside Cable Diameter (Max) [Max] [diameter]	20.07 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.49 "
Outside Cable Diameter (Min) [Min] [diameter]	12.45 mm
Panel Hole Size	0.984 in
Panel Hole Size	25 mm
Thread Length	16 mm
Thread Length	0.63 in
Thread Size	M25x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Type	Ingress Protection	Material	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Color	Panel Hole Size	Panel Hole Size	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch LEX225MSHTS	0.49 "	12.45 mm	M25x1.5	Cable Gland	IP66/IP68	Brass Nickel Plated	16 mm	0.63 in	130 °C	-60 °C	Silver	0.984 in	25 mm	O-Ring	0.79 in	20.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M25x1.5 Silver
