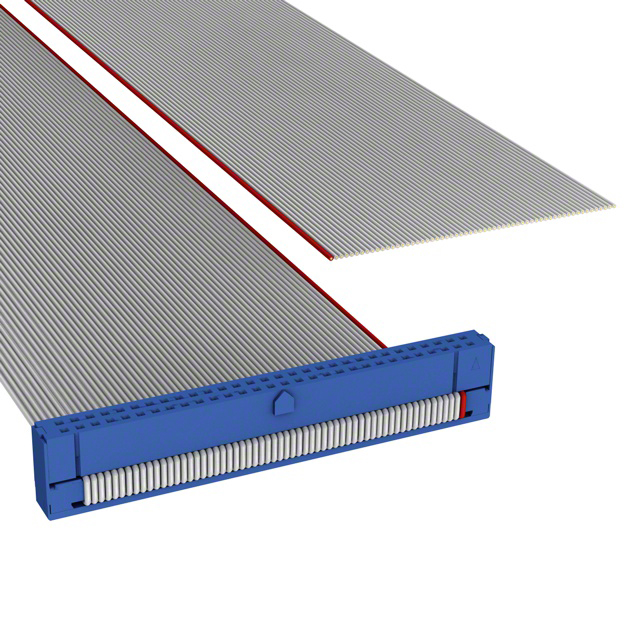

C1DXS-6036G

Active

CW Industries

IDC CABLE - CKR60S/AE60G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR60S/AE60G/X

Technical Specifications

Parameters and characteristics for this part

Specification	C1DXS-6036G

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Features	Number of Rows	Length [x]	Length [x]	Contact Finish	Usage	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Shielding	Cable Termination
CW Industries C1DXS-6036G	2.54 µm	100 µin	Socket to Cable	60	Polarizing Key Strain Relief	2	3 ft	914.4 mm	Tin	Board In	0.1 in	2.54 mm	0.05 "	1.27 mm	Unshielded	IDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
