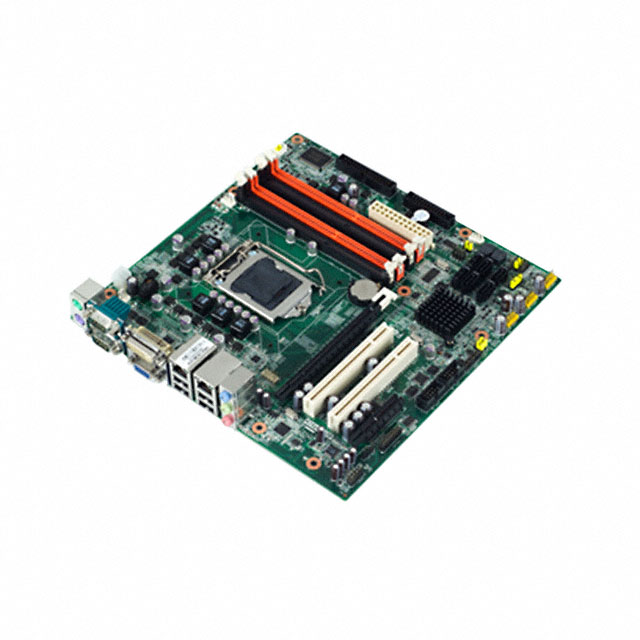

AIMB-580WG2-00A1E
ObsoleteAdvantech Corp
SBC 3.3GHZ 2/4 CORE 16GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIMB-580WG2-00A1E
ObsoleteAdvantech Corp
SBC 3.3GHZ 2/4 CORE 16GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-580WG2-00A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Xeon, i3, Intel Core i5, Pentium |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | PCIe, PCI |
| Form Factor | Micro-ATX (without Processor) |
| Number of Cores [Max] | 4 |
| Number of Cores [Min] | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 16 GB, 0 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 243.84 mm |
| Size / Dimension [x] | 9.6 " |
| Size / Dimension [y] | 9.6 in |
| Size / Dimension [y] | 243.84 mm |
| Speed [Max] | 3.3 GHz |
| Speed [Min] | 2.66 GHz |
| Storage Interface | SATA 2.0 (6) |
| USB | USB 2.0 (10) |
| Video Outputs | CRT, DVI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AIMB-580 Series
Single Board Computer 2.66GHz ~ 3.3GHz 2/4 Core 16GB/0GB RAM Intel Core i5/i3/Pentium/Xeon
