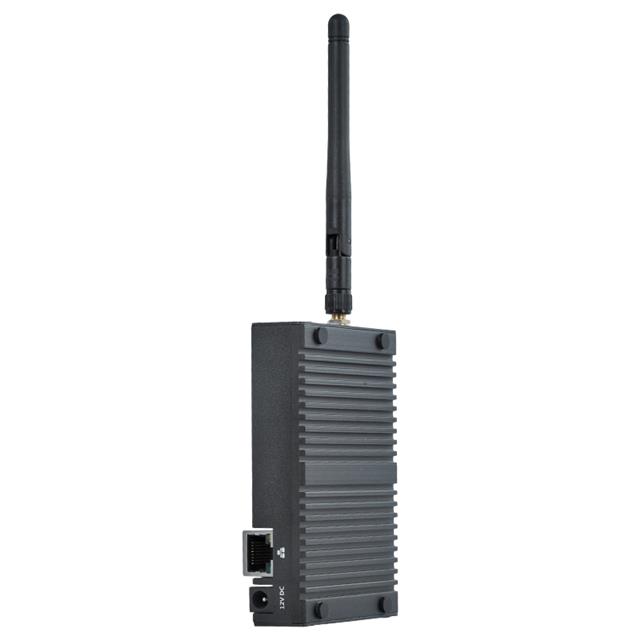

ED-CM4NANO-1116-C

Active

EDATEC

SBC 1.5GHZ 4 CORE 16GB/1GB RAM

Search across all available documentation for this part.

Active

EDATEC

SBC 1.5GHZ 4 CORE 16GB/1GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ED-CM4NANO-1116-C

Cooling Type	Heat Sink
Core Processor	Raspberry Pi CM4 # CM4101016: ARM Cortex-A72
Ethernet	100 Mbps, 10 Mbps, 1000 Mbps
Ethernet	RJ45
Form Factor	Raspberry Pi
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	103 mm
Size / Dimension [x]	4.055 in
Size / Dimension [y]	62 mm
Size / Dimension [y]	2.441 in
Speed	1.5 GHz
Storage Interface	microSD, eMMC
USB	USB 2.0 (1), USB 3.0 (2)
Video Outputs	HDMI

Part	Storage Interface	Speed	Video Outputs	Form Factor	Ethernet	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	USB	Cooling Type	Number of Cores
EDATEC ED-CM4NANO-1116-C	eMMC microSD	1.5 GHz	HDMI	Raspberry Pi	10 Mbps 100 Mbps 1000 Mbps	RJ45	-25 °C	60 °C	Raspberry Pi CM4 # CM4101016: ARM Cortex-A72	103 mm	4.055 in	62 mm	2.441 in	USB 2.0 (1) USB 3.0 (2)	Heat Sink	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 105.00

General part information

Single Board Computer 1.5GHz 4 Core 16GB/1GB RAM Raspberry Pi CM4 # CM4101016: ARM Cortex-A72
