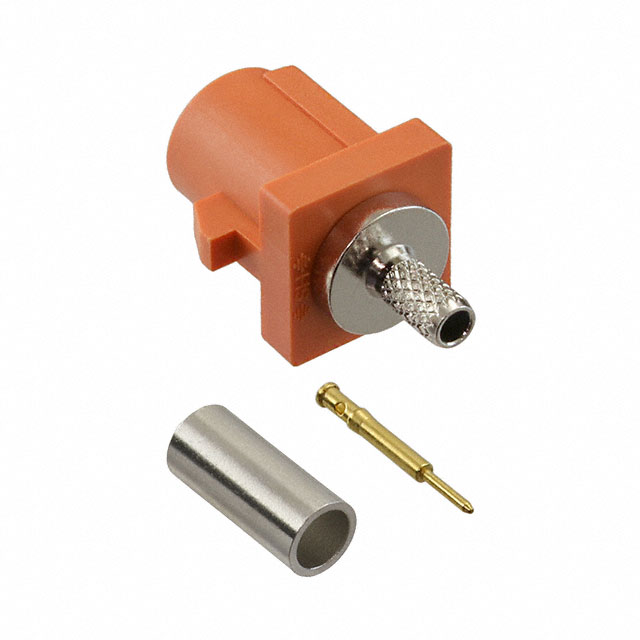

RF55-31M-T-02-50-X-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: STRAIGHT

Search across all available documentation for this part.

Active

Adam Tech

FAKRA PLUG SMB TYPE: STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-31M-T-02-50-X-SH

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code M
Frequency - Max [Max]	4 GHz
Housing Color	Pastel, Orange
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Connector Style	Body Finish	Fastening Type	Body Material	Frequency - Max [Max]	Features	Center Contact Material	Connector Type	Dielectric Material	Impedance	Cable Group	Housing Color	Center Contact Plating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Shield Termination	Contact Termination
Adam Tech RF55-31F-T-02-50-X-SH	Fakra SMB	Nickel	Locking Ramp	Brass	4 GHz	Code F	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	316 RG-174	Brown	Gold	Free Hanging (In-Line)	85 °C	-40 °C	1	Crimp	Crimp
Adam Tech RF55-31M-T-02-50-X-SH	Fakra SMB	Nickel	Locking Ramp	Brass	4 GHz	Code M	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	316 RG-174	Orange Pastel	Gold	Free Hanging (In-Line)	85 °C	-40 °C	1	Crimp	Crimp
Adam Tech RF55-31D-T-02-50-X-SH	Fakra SMB	Nickel	Locking Ramp	Brass	4 GHz	Code D	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	316 RG-174	Bordeaux Violet	Gold	Free Hanging (In-Line)	85 °C	-40 °C	1	Crimp	Crimp
Adam Tech RF55-31H-T-02-50-X-SH	Fakra SMB	Nickel	Locking Ramp	Brass	4 GHz	Code H	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	316 RG-174	Violet	Gold	Free Hanging (In-Line)	85 °C	-40 °C	1	Crimp	Crimp
