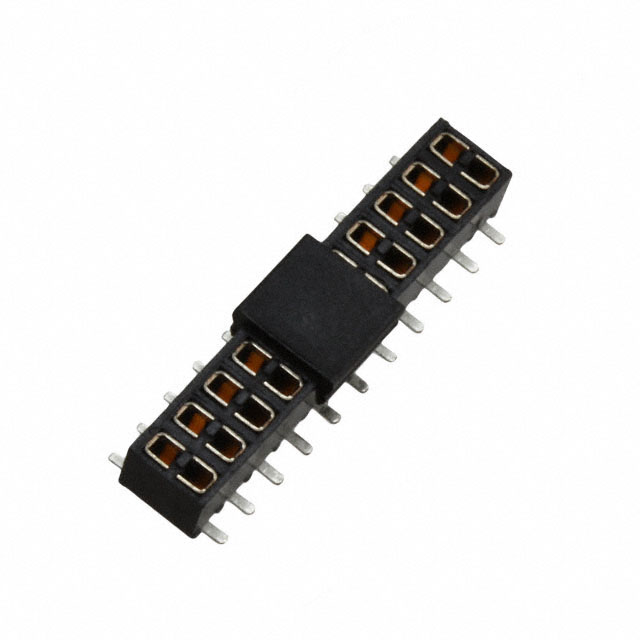

153222-2020-RB-WD

Obsolete

3M (TC)

CONN RCPT 22POS 0.079 GOLD SMD

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 22POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	153222-2020-RB-WD

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.129 in
Insulation Height	3.28 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 V

Part	Voltage Rating	Number of Positions Loaded	Termination	Style	Fastening Type	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Color	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Material	Number of Rows	Contact Finish - Mating	Contact Shape	Features	Insulation Height	Insulation Height	Contact Type
3M (TC) 153222-2020-RB-WD	500 V	All	Solder	Board to Board Cable	Push-Pull	Surface Mount	22 positions	30 Áin	0.76 Ám	0.079 in	2 mm	105 ░C	-55 °C	Tin	Black	UL94 V-0	0.079 in	2 mm	Receptacle Bottom or Top Entry	Copper Alloy	2	Gold	Square	Board Guide Pick and Place	0.129 in	3.28 mm	Female Socket
3M (TC) 153222-2000-RB	500 V	All	Solder	Board to Board Cable	Push-Pull	Surface Mount	22 positions	30 Áin	0.76 Ám	0.079 in	2 mm	105 ░C	-55 °C	Tin	Black	UL94 V-0	0.079 in	2 mm	Receptacle Bottom or Top Entry	Copper Alloy	2	Gold	Square		0.129 in	3.28 mm	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
