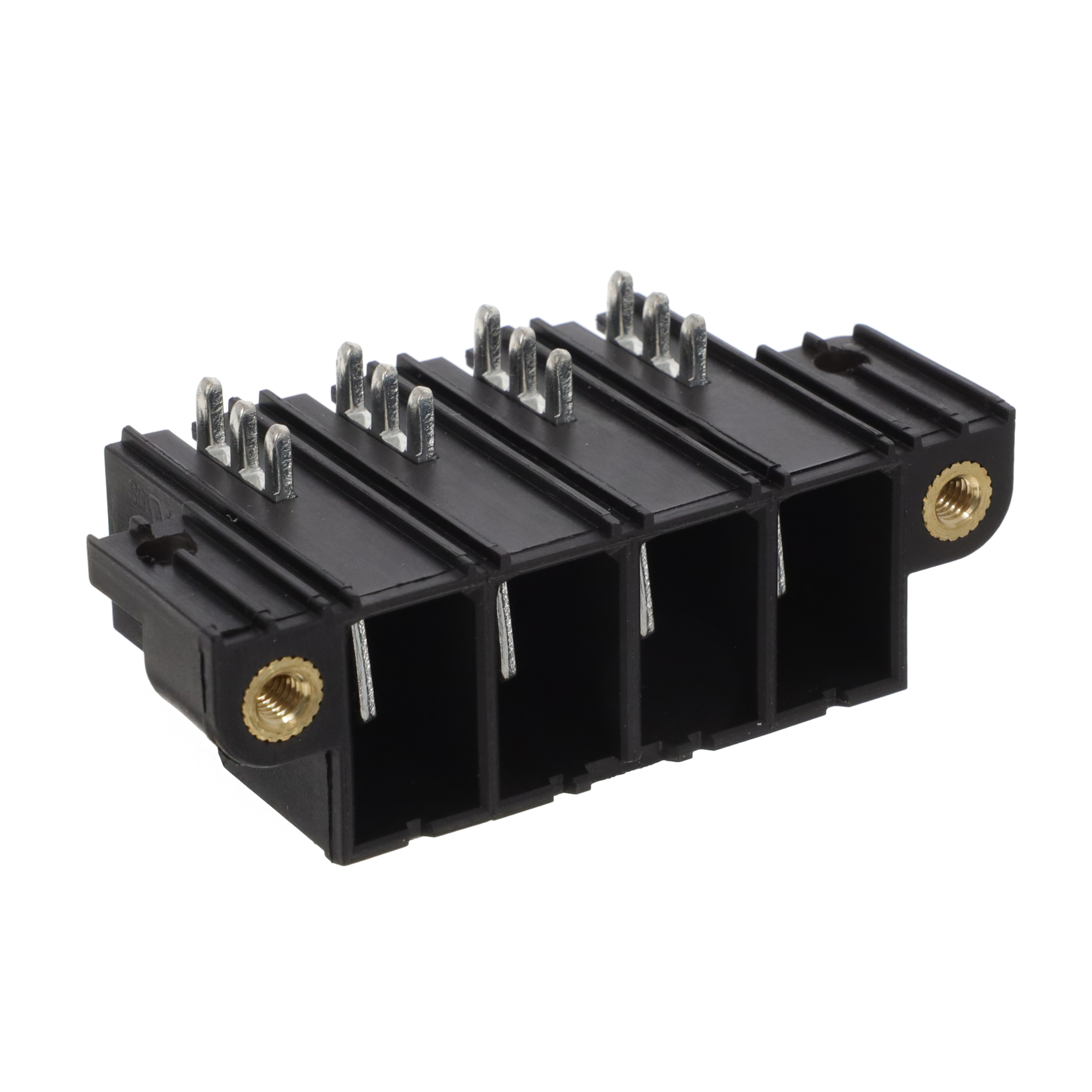

CONN WIRE TO BOARD HDR 4 POS 12MM SOLDER RA THRU-HOLE EUROMAX

Search across all available documentation for this part.

Active

Molex

CONN WIRE TO BOARD HDR 4 POS 12MM SOLDER RA THRU-HOLE EUROMAX

Technical Specifications

Parameters and characteristics for this part

Specification	0394260004

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.169 in
Contact Tail Length	4.29 mm
Current - UL	85 A
Features	Mating and Mounting Flange
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.835 "
Insulation Height	21.21 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature	130 °C
Pitch [x]	12 mm
Pitch [x]	0.472 in
Positions Per Level	4
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)

Part	Features	Material Flammability Rating	Operating Temperature	Housing Material	Insulation Height	Insulation Height	Contact Mating Finish	Pitch [x]	Pitch [x]	Header Orientation	Positions Per Level	Termination Style	Current - UL	Number of Positions	Number of Levels	Color	Mounting Type	Contact Tail Length	Contact Tail Length	Contact Material	Type
Molex 0394260007	Mating and Mounting Flange	UL94 V-0	130 °C	Polybutylene Terephthalate (PBT)	0.835 "	21.21 mm	Tin	12 mm	0.472 in	90° Right Angle	7	Solder	85 A	7	1	Black	Through Hole	0.169 in	4.29 mm	Copper	Header Male Pins Shrouded (4 Side)
Molex 0394260004	Mating and Mounting Flange	UL94 V-0	130 °C	Polybutylene Terephthalate (PBT)	0.835 "	21.21 mm	Tin	12 mm	0.472 in	90° Right Angle	4	Solder	85 A	4	1	Black	Through Hole	0.169 in	4.29 mm	Copper	Header Male Pins Shrouded (4 Side)
Molex 0394260006	Mating and Mounting Flange	UL94 V-0	130 °C	Polybutylene Terephthalate (PBT)	0.835 "	21.21 mm	Tin	12 mm	0.472 in	90° Right Angle	6	Solder	85 A	6	1	Black	Through Hole	0.169 in	4.29 mm	Copper	Header Male Pins Shrouded (4 Side)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.472" (12.00mm) 90°, Right Angle Through Hole

Technical documentation and resources

No documents available
