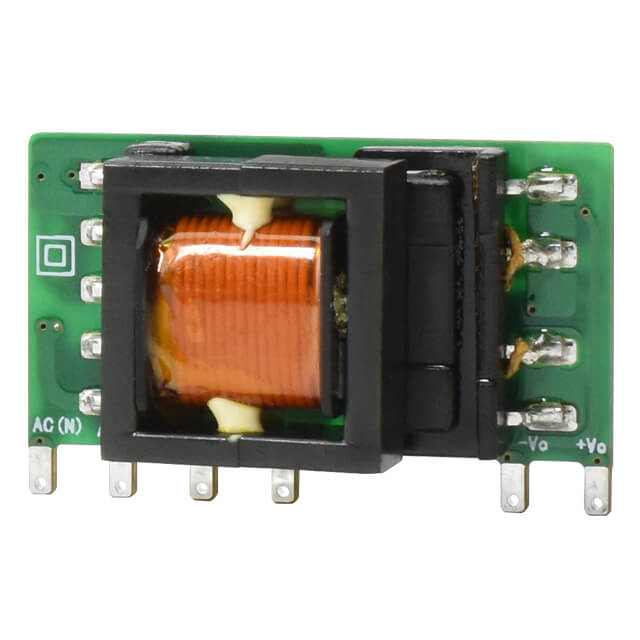

PBO-10C-24

Obsolete

CUI Inc.

DC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	PBO-10C-24

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	420 mA
Efficiency	83 %
Line Regulation	1 %
Load Regulation	1.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SIP Module
Power (Watts)	10 W
Size / Dimension [x]	1.26 "
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.59 in
Size / Dimension [y]	15 mm
Size / Dimension [z]	0.68 in
Size / Dimension [z]	17.2 mm
Standard Number	60335-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	24 V

Part	Applications	Voltage - Output 1	Type	Standard Number	Mounting Type	Load Regulation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Approval Agency	Line Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]
CUI Inc. PBO-10C-9	Household Appliances ITE (Commercial)	9 V	Open Frame	60335-1 62368-1	Through Hole	1.5 %	1.26 "	32 mm	0.68 in	17.2 mm	0.59 in	15 mm	1	CE cURus	1 %	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	10 W	85 °C	-40 °C	80 %
CUI Inc. PBO-10C-15	Household Appliances ITE (Commercial)	15 V	Open Frame	60335-1 62368-1	Through Hole	1.5 %	1.26 "	32 mm	0.68 in	17.2 mm	0.59 in	15 mm	1	CE cURus	1 %	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	10 W	85 °C	-40 °C		670 mA
CUI Inc. PBO-10C-3	Household Appliances ITE (Commercial)	3.3 V	Open Frame	60335-1 62368-1	Through Hole	1.5 %	1.26 "	32 mm	0.68 in	17.2 mm	0.59 in	15 mm	1	CE cURus	1 %	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	6.6 W	85 °C	-40 °C	73 %	2 A
CUI Inc. PBO-10C-5	Household Appliances ITE (Commercial)	5 V	Open Frame	60335-1 62368-1	Through Hole	1.5 %	1.26 "	32 mm	0.68 in	17.2 mm	0.59 in	15 mm	1	CE cURus	1 %	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	10 W	85 °C	-40 °C	77 %	2 A
CUI Inc. PBO-10C-24	Household Appliances ITE (Commercial)	24 V	Open Frame	60335-1 62368-1	Through Hole	1.5 %	1.26 "	32 mm	0.68 in	17.2 mm	0.59 in	15 mm	1	CE cURus	1 %	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	10 W	85 °C	-40 °C	83 %	420 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 420mA 85 ~ 305 VAC, 100 ~ 430 VDC Input

Technical documentation and resources

No documents available
