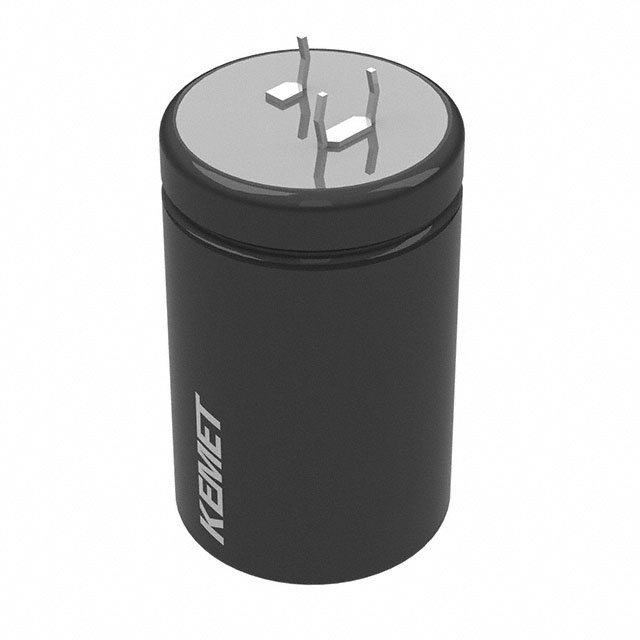

ALC70F131CB500

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsALC70F131CB500 Spec Datasheet

ALC70F131CB500

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR,

Deep-Dive with AI

DocumentsALC70F131CB500 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC70F131CB500

Applications	General Purpose
Capacitance	130 µF
ESR (Equivalent Series Resistance)	1.541 Ohm
Impedance	1.09 Ohms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	13000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In - 3 Lead
Polarization	Polar
Ripple Current @ High Frequency	2.41 A
Ripple Current @ Low Frequency	1.1 A
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	500 V

ALC70F Series

Part	Capacitance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Package / Case	Lifetime @ Temp.	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lead Spacing	Lead Spacing	Impedance	Applications	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALC70F131CB500	130 µF	500 V	30 mm	1.181 inches	1.1 A	2.41 A	1.541 Ohm	Radial Can - Snap-In - 3 Lead	13000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	1.09 Ohms	General Purpose	Polar
KEMET ALC70F511DD400	510 µF	400 V	35 mm	1.378 in	2.46 A	5.74 A	272 mOhm	Radial Can - Snap-In - 3 Lead	15000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	145 mOhms	General Purpose	Polar	42 mm	1.654 in
KEMET ALC70F181DD600	180 çF		35 mm	1.378 in	1.81 A	3.91 A	711 mOhm	Radial Can - Snap-In - 3 Lead	15000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	491 mOhms	General Purpose	Polar	42 mm	1.654 in
KEMET ALC70F273DF040	27000 µF	40 V	35 mm	1.378 in	8.8 A	10.66 A	30 mOhm	Radial Can - Snap-In - 3 Lead	15000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	25 mOhms	General Purpose	Polar			2.047 in	52 mm
KEMET ALC70F202CB100	2 mF	100 V	30 mm	1.181 inches	3.63 A	5.2 A	128 mOhm	Radial Can - Snap-In - 3 Lead	13000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	100 mOhms	General Purpose	Polar
KEMET ALC70F221BD400	220 µF	400 V	25 mm	0.984 "	1.31 A	3.2 A		Radial Can - Snap-In - 3 Lead	10000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm		General Purpose	Polar	42 mm	1.654 in
KEMET ALC70F911CF250	910 µF	250 V	30 mm	1.181 inches	2.88 A	6.21 A	200 mOhm	Radial Can - Snap-In - 3 Lead	13000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	116 mOhms	General Purpose	Polar			2.047 in	52 mm
KEMET ALC70F121BD550	120 µF	550 V	25 mm	0.984 "	920 mA	1.44 A	3.586 Ohm	Radial Can - Snap-In - 3 Lead	10000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	3.118 Ohms	General Purpose	Polar	42 mm	1.654 in
KEMET ALC70F181CF600	180 çF		30 mm	1.181 inches	1.75 A	3.87 A	707 mOhm	Radial Can - Snap-In - 3 Lead	13000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	488 mOhms	General Purpose	Polar			2.047 in	52 mm
KEMET ALC70F301CF500	300 µF	500 V	30 mm	1.181 inches	1.91 A	4.11 A	670 mOhm	Radial Can - Snap-In - 3 Lead	13000 Hrs	20 %	85 °C	-40 °C	Through Hole	0.394 in	10 mm	475 mOhms	General Purpose	Polar			2.047 in	52 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	320	$ 4.03

Description

General part information

ALC70F Series

130 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3 Lead 1.541Ohm @ 100Hz 13000 Hrs @ 85°C
