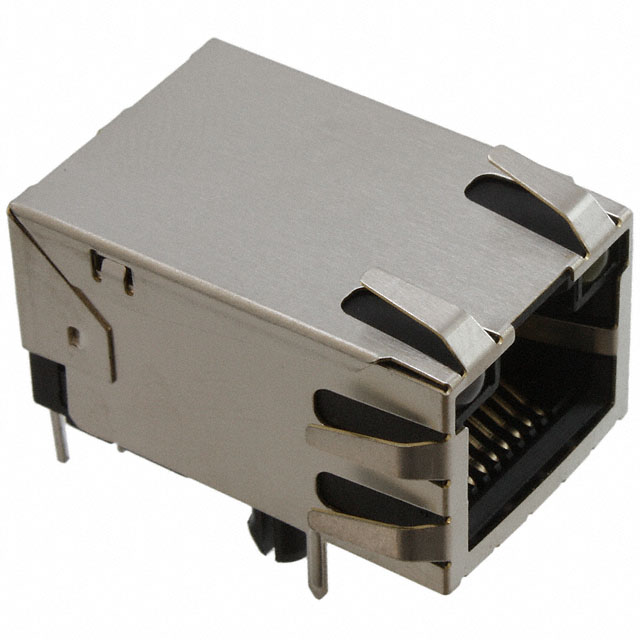

A64-113-271P521

Active

EDAC Inc.

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

EDAC Inc.

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	A64-113-271P521

Applications	10/100 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Height Above Board	13.4 mm
Height Above Board [z]	0.528 "
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
LED Color	Orange - Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	5
Number of Ports	1
Number of Rows	1
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Number of Rows	Tab Direction	Contact Finish	Height Above Board [z]	Height Above Board	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Termination	Applications	Number of Ports	Housing Material	Mounting Type	Number of Cores per Jack	Orientation	LED Color
EDAC Inc. A64-113-271P521	1	Up	Gold	0.528 "	13.4 mm	RJ45	15 µin	0.38 µm	Shielded EMI Finger	Solder	10/100 Base-T	1	Polybutylene Terephthalate (PBT) Polyester	Through Hole	5	90 °	Green Orange - Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T
