Q-0203K0001003i

Active

Amphenol Custom Cable

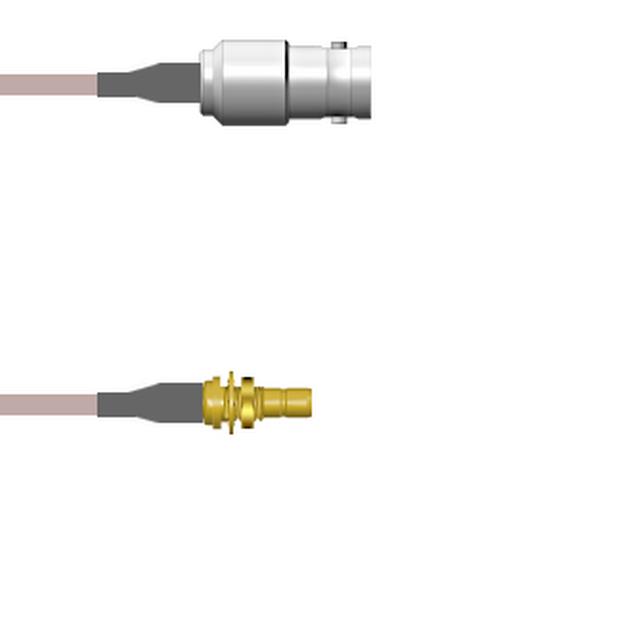

COAX CABLE BNC TO SMB 3"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO SMB 3"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0203K0001003i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Part	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector Mounting Type	1st Connector	1st Contact Gender	Cable Type	2nd Connector	Length	Length	Length	Features	2nd Contact Gender	Overall Impedance	Style	Frequency - Max [Max]	Color
Amphenol Custom Cable Q-0203K0001108i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	BNC Jack	Female	RG-178	SMB Jack	2.7 m	9 ft	108 in	Shielded	Female	50 Ohms	BNC to SMB	4 GHz	Copper
Amphenol Custom Cable Q-0203K0001003i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Panel Mount	BNC Jack	Female	RG-178	SMB Jack	76.2 mm		3 in	Shielded	Female	50 Ohms	BNC to SMB	4 GHz	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMB RG-178 3.000" (76.20mm)

Technical documentation and resources

No documents available
