09152006227

Active

HARTING Technology Group

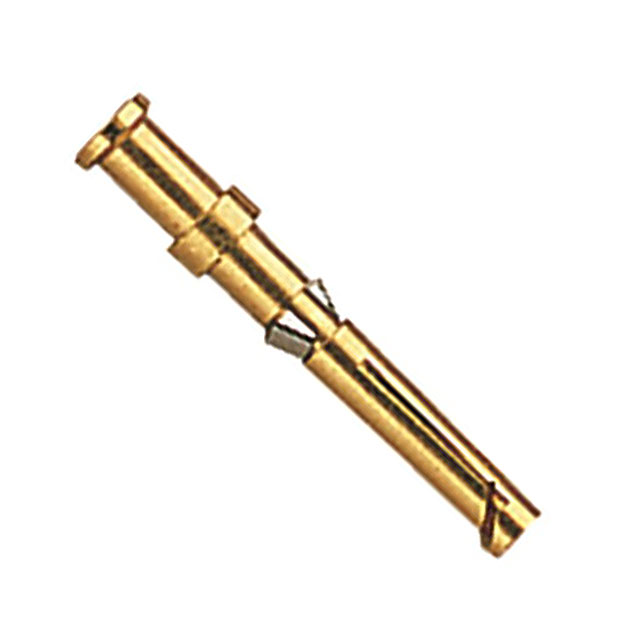

HAN D FEMALE CONTACT AWG 26-22 (0.14-0.37MM2), GOLD - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN D FEMALE CONTACT AWG 26-22 (0.14-0.37MM2), GOLD - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pin or Socket	Contact Termination	Wire Gauge	Type	Wire Gauge [Min]	Wire Gauge [Max]
HARTING Technology Group 09152006125	Gold	Pin	Crimp	18 AWG	Machined
HARTING Technology Group 09152006124	Gold	Pin	Crimp		Machined	22 AWG	26 AWG
HARTING Technology Group 09152006127	Gold	Pin	Crimp		Machined	22 AWG	26 AWG
HARTING Technology Group 09152006126	Gold	Pin	Crimp	13.5 AWG	Machined
HARTING Technology Group 09152006226	Gold	Socket	Crimp	13.5 AWG	Machined
HARTING Technology Group 09152006122	Gold	Pin	Crimp	18 AWG	Machined
HARTING Technology Group 09152006221	Gold	Socket	Crimp	16 AWG	Machined
HARTING Technology Group 09152006224	Gold	Socket	Crimp		Machined	22 AWG	26 AWG
HARTING Technology Group 09152006227	Gold	Socket	Crimp		Machined	22 AWG	26 AWG
HARTING Technology Group 09152006121	Gold	Pin	Crimp	16 AWG	Machined

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Crimp Socket 22-26 AWG Gold
