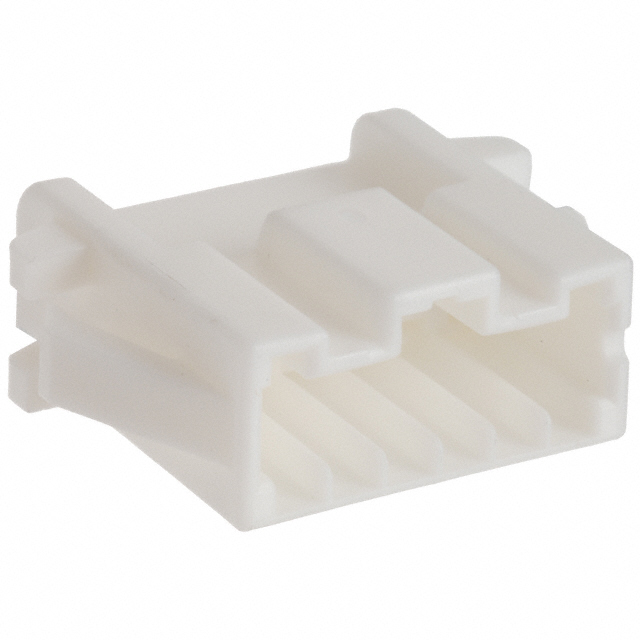

DF1EA-6EP-2.5C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 6POS 2.50MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 6POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Insulation Material	Number of Positions	Fastening Type	Connector Type	Contact Termination	Number of Rows	Note	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type
Hirose Electric USA, Inc. DF1EA-2EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)	2	Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF1EA-5EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)		Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF1EA-6EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)	6	Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF1EA-8EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)	8	Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF1EA-7EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)	7	Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF1EA-4EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)	4	Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF1EA-3EP-2.5C	0.098 in	2.5 mm	Nylon Polyamide (PA)		Latch Holder	Plug	Crimp	1	Contacts Not Included	Male Pin	-35 °C	85 °C	White	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.44

General part information

6 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)

Technical documentation and resources
