12401948E412A
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 TYPC 24P BRD CUT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12401948E412A
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 TYPC 24P BRD CUT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12401948E412A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Right Angle, Through Hole, Surface Mount, Board Cutout |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.70 | |||
| Tape & Reel (TR) | 1000 | $ 0.62 | ||
| 2000 | $ 0.58 | |||
| 3000 | $ 0.56 | |||
| 5000 | $ 0.54 | |||
| 10000 | $ 0.52 | |||
Description
General part information
1240194 Series

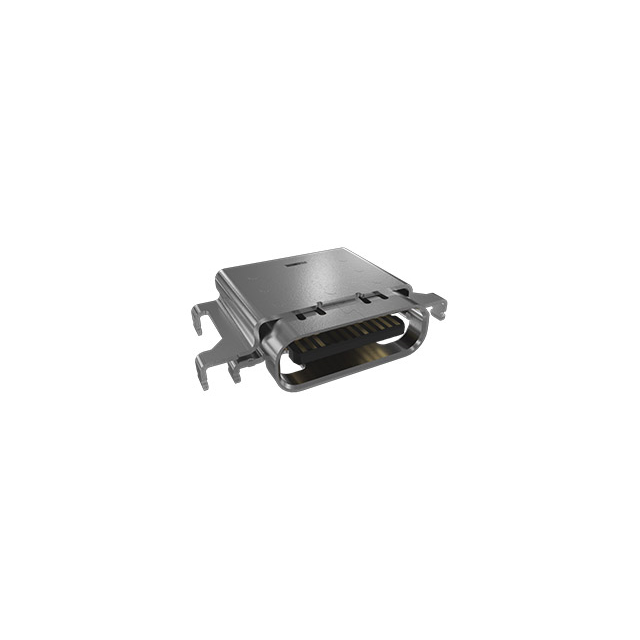

USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Board Cutout, Surface Mount, Right Angle; Through Hole
