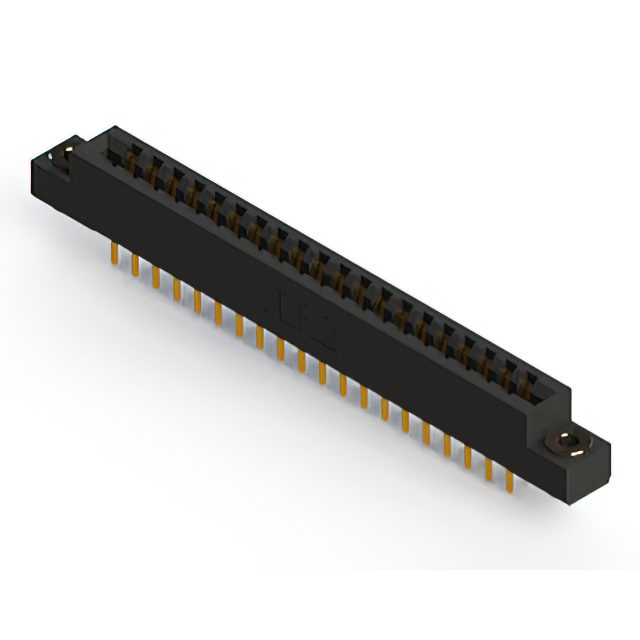

355-040-520-503
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-040-520-503
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-040-520-503 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-040 Series
| Part | Number of Positions | Card Type | Mounting Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Features | Number of Rows | Termination Rows | Contact Material | Pitch [x] | Pitch [x] | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 40 | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Card Extender | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold |
EDAC Inc. | 40 | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | |||
EDAC Inc. | 40 | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder Eyelet(s) | Gold | ||||
EDAC Inc. | 40 | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Card Extender | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | |||
EDAC Inc. | 40 | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder Eyelet(s) | Gold | ||||
EDAC Inc. | 40 | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | |
EDAC Inc. | 40 | Non Specified - Dual Edge | Through Hole | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | ||||
EDAC Inc. | 40 | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Card Extender | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold |
EDAC Inc. | 40 | Non Specified - Dual Edge | Panel Mount Through Hole | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | |||
EDAC Inc. | 40 | Non Specified - Dual Edge | Dual | 10 Áin | 0.25 Ám | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2 | 2 | Copper Alloy | 0.156 in | 3.96 mm | Black | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 20 | 20 | 20 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder Eyelet(s) | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
