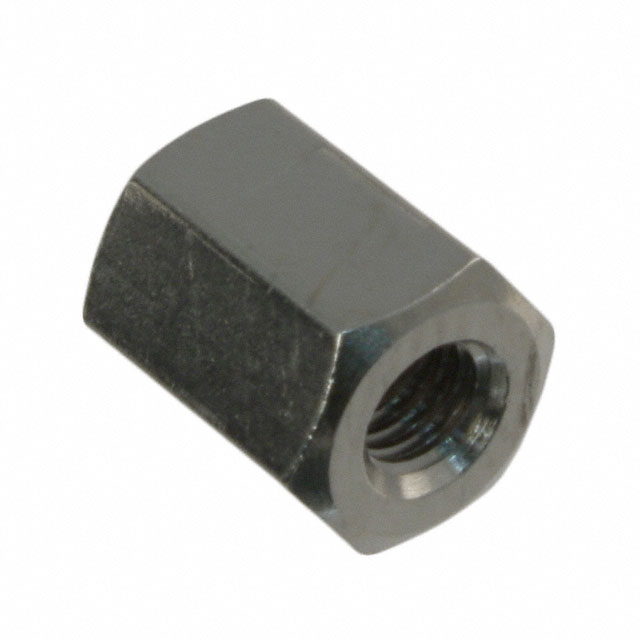

R30-1010702

Active

Harwin Inc.

STANDOFF, M3, BRASS, 7MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

STANDOFF, M3, BRASS, 7MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Between Board Height	Between Board Height	Material	Gender	Type	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Threaded/Unthreaded	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall
Harwin Inc. R30-1010702	0.276 in	7 mm	Brass	Female	Hex Standoff	M3x0.5	0.276 in	7 mm	Threaded	0.217 in	5.5 mm	Nickel
Harwin Inc. R30-1010802			Brass	Female	Hex Standoff	M3x0.5	0.315 in	8 mm	Threaded	0.217 in	5.5 mm	Nickel	0.315 in	8 mm
Harwin Inc. R30-1011102	0.433 in	11 mm	Brass	Female	Hex Standoff	M3x0.5	0.433 in	11 mm	Threaded	0.217 in	5.5 mm	Nickel
Harwin Inc. R30-1011402	0.551 in	14 mm	Brass	Female	Hex Standoff	M3x0.5	0.551 "	14 mm	Threaded	0.217 in	5.5 mm	Nickel
Harwin Inc. R30-1012502	0.984 in	25 mm	Brass	Female	Hex Standoff	M3x0.5	0.984 in	25 mm	Threaded	0.217 in	5.5 mm	Nickel
Harwin Inc. R30-1011502	0.591 in	15 mm	Brass	Female	Hex Standoff	M3x0.5	0.591 in		Threaded	0.217 in	5.5 mm	Nickel			15 mm
Harwin Inc. R30-1011202	0.472 in	12 mm	Brass	Female	Hex Standoff	M3x0.5	0.472 in	12 mm	Threaded	0.217 in	5.5 mm	Nickel
Harwin Inc. R30-1011002	0.394 in	10 mm	Brass	Female	Hex Standoff	M3x0.5	0.394 "	10 mm	Threaded	0.217 in	5.5 mm	Nickel
Harwin Inc. R30-1011702	0.669 in	17 mm	Brass	Female	Hex Standoff	M3x0.5			Threaded	0.217 in	5.5 mm	Nickel			17 mm	0.669 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Brass 0.276" (7.00mm)
