BPJR01X
ActiveSwitchcraft Inc.

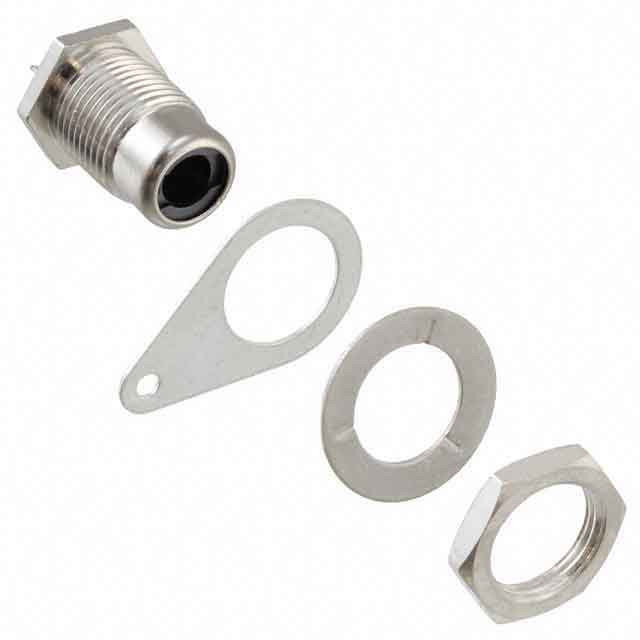

CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
BPJR01X
ActiveSwitchcraft Inc.
CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BPJR01X |
|---|---|
| Actual Diameter [custom] | 8.25 mm |
| Actual Diameter [custom] | 0.134 " |
| Actual Diameter [custom] | 3.4 mm |
| Actual Diameter [custom] | 0.325 " |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Features | Mounting Hardware, Grounding Tab |
| Gender | Female |
| Includes | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Panel Hole Size | 0.375 in |
| Panel Hole Size | 9.52 mm |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Thread Size | 3/8"-32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.67 | |
| 10 | $ 2.81 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.34 | |||
| 100 | $ 2.17 | |||
| 300 | $ 1.93 | |||
| 500 | $ 1.83 | |||
| 1000 | $ 1.71 | |||
| 2500 | $ 1.56 | |||
Description
General part information
BPJR01 Series
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
Documents
Technical documentation and resources
No documents available
