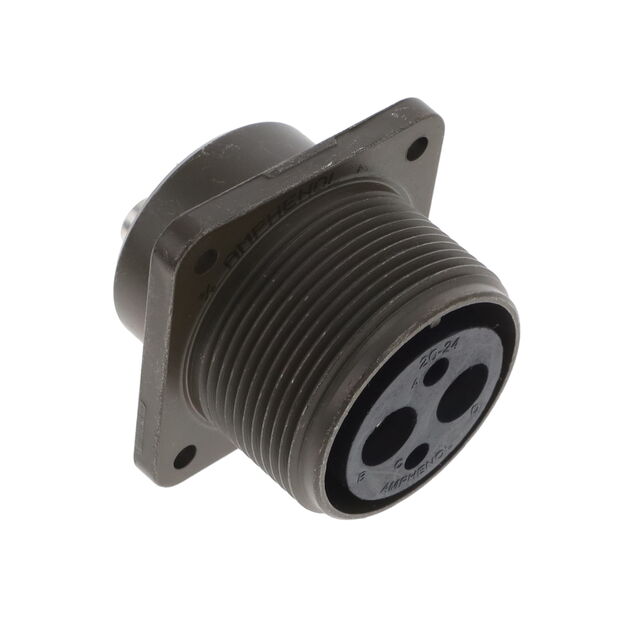

MS3102E20-24S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102E20-24S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	20
Shielding	Unshielded

MS3102E20 Series

Part	Shell Material	Number of Positions	Insert Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Primary Material	Applications	Mounting Feature	Connector Type	Orientation	Ingress Protection	Shell Finish	Qualification	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Color	Shielding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)	Grade
Amphenol Industrial Operations MS3102E20-24P	Aluminum Alloy	4	Neoprene	20	24	Metal	Marine Military	Flange	Male Pins Receptacle	N	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-5015	Silver	1.125 in	28.58 mm	Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C
Amphenol Industrial Operations MS3102E20-7S	Aluminum Alloy	8	Neoprene			Metal	Marine Military	Flange	Receptacle Female Sockets	N	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-5015	Silver	1.125 in	28.58 mm	Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C	20-7
Amphenol Industrial Operations MS3102E20-24SW
Amphenol Industrial Operations MS3102E20-18S
Amphenol Industrial Operations MS3102E20-12P
Amphenol Industrial Operations MS3102E20-4PW	Aluminum Alloy	4	Neoprene			Metal	Marine Military	Flange	Male Pins Receptacle	W	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-5015	Silver	1.125 in	28.58 mm	Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C	20-4
Amphenol Industrial Operations MS3102E20-19S	Aluminum Alloy		Neoprene	20	19	Metal	Marine Military	Flange	Receptacle Female Sockets	N	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-5015	Silver	1.125 in	28.58 mm	Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C
Amphenol Industrial Operations MS3102E20-4P	Aluminum Alloy	4	Neoprene			Metal	Marine Military	Flange	Male Pins Receptacle	N	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-5015	Silver	1.125 in	28.58 mm	Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C	20-4
Amphenol Industrial Operations MS3102E20-24S	Aluminum Alloy	4	Neoprene	20	24	Metal	Marine Military	Flange	Receptacle Female Sockets	N	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-DTL-5015	Silver			Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C		13 A 46 A	Military
Amphenol Industrial Operations MS3102E20-18P	Aluminum Alloy	9	Neoprene	20	18	Metal	Marine Military	Flange	Male Pins Receptacle	N	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-DTL-5015	Silver			Olive Drab	Unshielded	Copper Alloy	-55 °C	125 °C		13 A 23 A	Military
