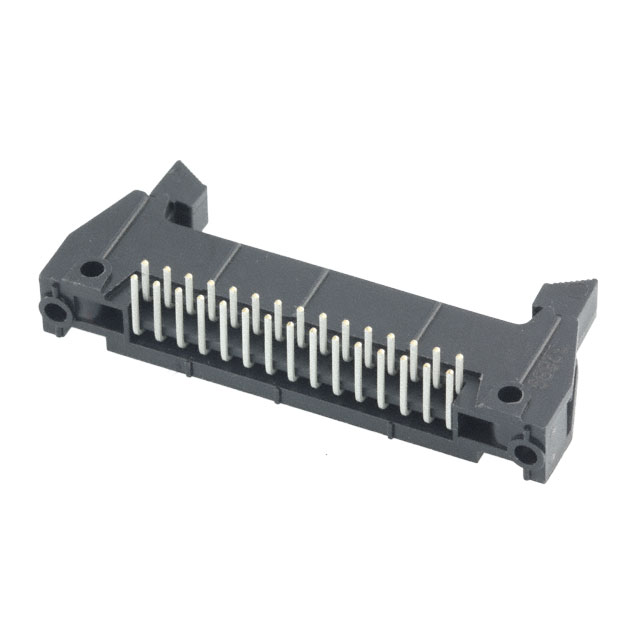

N3440-5202RB

Active

3M (TC)

80400031771 N3440-5202RB=30/HDR/SL/RA/HT/.112/30AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3440-5202RB

Active

3M (TC)

80400031771 N3440-5202RB=30/HDR/SL/RA/HT/.112/30AVG/ROHS

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3440-5202RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	0.34 in
Insulation Height	8.64 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

N3440 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Material	Contact Shape	Insulation Material	Contact Type	Fastening Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Style	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Number of Positions	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Insulation Height	Insulation Height
3M (TC) N3440-6303RB	200 µin	5.08 µm	0.1 in	2.54 mm	0.695 in	17.65 mm	1.75 A	Through Hole	2.54 mm	0.1 in	UL94 V-0	Copper Alloy	Square	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Latch Lock/Eject Hooks Long	2	105 ░C	-55 °C	Solder	Header	6.1 mm	0.24 in	Board to Cable/Wire	Gold	3.94 mm	0.155 "	30 Áin	0.76 Ám	Shrouded - 4 Wall	30	All	Black	Tin	17.27 mm	0.68 in
3M (TC) N3440-5202RB	200 µin	5.08 µm	0.1 in	2.54 mm			1.75 A	Through Hole Right Angle	2.54 mm	0.1 in	UL94 V-0	Copper Alloy	Square	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Latch Lock/Eject Hooks Short	2	105 ░C	-55 °C	Solder	Header	6.1 mm	0.24 in	Board to Cable/Wire	Gold	2.84 mm	0.112 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	30	All	Black	Tin	8.64 mm	0.34 in
3M (TC) N3440-6002RB	200 µin	5.08 µm	0.1 in	2.54 mm	0.652 in	16.56 mm	1.75 A	Through Hole	2.54 mm	0.1 in	UL94 V-0	Copper Alloy	Square	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Push-Pull	2	105 ░C	-55 °C	Solder	Header	6.1 mm	0.24 in	Board to Cable/Wire	Gold	2.84 mm	0.112 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	30	All	Black	Tin	17.27 mm	0.68 in
3M (TC) N3440-L302RB	200 µin	5.08 µm	0.1 in	2.54 mm				Through Hole Right Angle	2.54 mm	0.1 in	UL94 V-0	Copper Alloy	Square	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Latch Lock/Eject Hooks Long	2	105 ░C	-55 °C	Solder	Header Stackable (2)	6.1 mm	0.24 in	Board to Cable/Wire	Gold	2.84 mm	0.112 in	30 Áin	0.76 Ám	Shrouded - 4 Wall		All	Black	Tin	16.76 mm	0.66 in
3M (TC) N3440-L002RB	200 µin	5.08 µm	0.1 in	2.54 mm				Through Hole Right Angle	2.54 mm	0.1 in	UL94 V-0	Copper Alloy	Square	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Push-Pull	2	105 ░C	-55 °C	Solder	Header Stackable (2)	6.1 mm	0.24 in	Board to Cable/Wire	Gold	2.84 mm	0.112 in	30 Áin	0.76 Ám	Shrouded - 4 Wall		All	Black	Tin	16.76 mm	0.66 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.06
		10	$ 4.60
		250	$ 3.54
		500	$ 3.44
		1000	$ 2.94

Description

General part information

N3440 Series

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
