LXK8-PW30-0024A

Obsolete

Lumileds

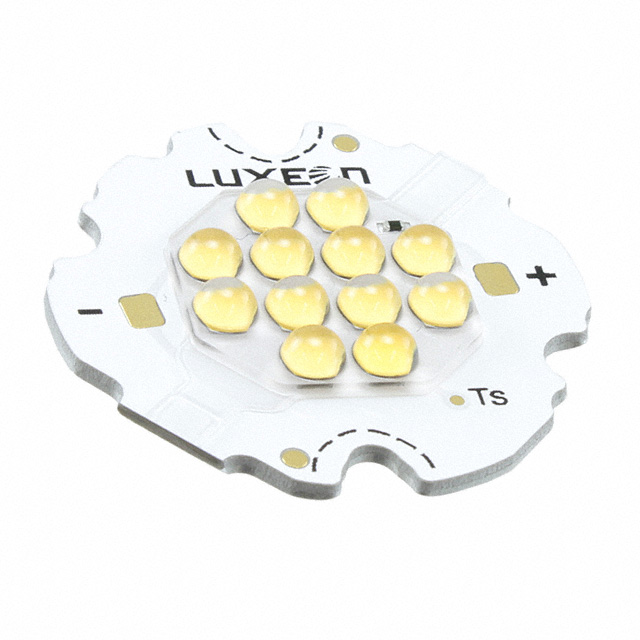

LED MOD LUXEON K STARBRD 3000K

Search across all available documentation for this part.

Obsolete

Lumileds

LED MOD LUXEON K STARBRD 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	LXK8-PW30-0024A

CCT (K)	3000 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	1.05 A
Current - Test	350 mA
Height [z]	3.42 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	111 lm/W
Luminous Flux @ Current/Temperature	2445 lm
Size / Dimension [x]	30 mm
Size / Dimension [y]	30 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	100 °

Part	Type	CRI (Color Rendering Index)	Height [z]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	Configuration	Viewing Angle	Color	Current - Max [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Temperature - Test	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Lumileds LXK8-PW27-0004	LED Module	80	3.42 mm	375 lm	102 lm/W	Domed	Round	100 °	Warm White	1.05 A	350 mA	10.5 V	2700 K	85 °C	17.57 mm
Lumileds LXK8-PW30-0024A	LED Module	80	3.42 mm	2445 lm	111 lm/W	Domed	Starboard	100 °	Warm White	1.05 A	350 mA		3000 K	85 °C		30 mm	30 mm
Lumileds LXK8-PW40-0024A	LED Module	80	3.42 mm	2660 lm	121 lm/W	Domed	Starboard	100 °	Neutral White	1.05 A	350 mA		4000 K	85 °C		30 mm	30 mm	3030 lm	2530 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module LUXEON K White, Warm Starboard
