28S132-S00N5

Active

Rosenberger

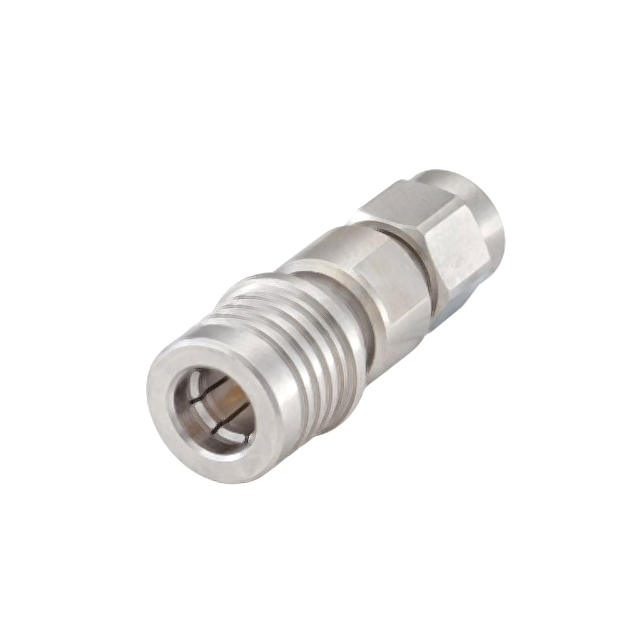

ADAPT QMA PLUG - SMA PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT QMA PLUG - SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	28S132-S00N5

Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass, Bronze
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	QMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Conversion Type	Mounting Type	Style	Body Finish	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Center Contact Plating	Fastening Type	Convert To (Adapter End)	Center Gender	Body Material	Convert From (Adapter End)	Adapter Type	Impedance	Dielectric Material
Rosenberger 28S132-S00N5	Between Series	Free Hanging (In-Line)	Straight	White Bronze	Brass	85 °C	-40 °C	18 GHz	Gold	Snap-On Threaded	Male Pin SMA Plug	Male to Male	Brass Bronze	QMA Plug Male Pin	Plug to Plug	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector QMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
