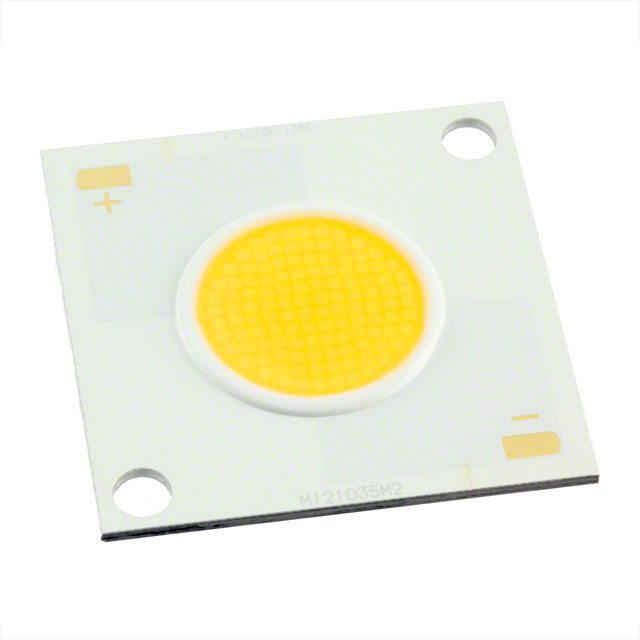

CLU731-1210C4-353M2K1

Active

Citizen Finedevice Co Ltd

LED COB CLU731 WM WHT SQ 3500K

Search across all available documentation for this part.

Active

Citizen Finedevice Co Ltd

LED COB CLU731 WM WHT SQ 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU731-1210C4-353M2K1

CCT (K)	3500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	2.3 A
Current - Test	1.75 A
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13 mm
Lumens/Watt @ Current - Test	120 lm/W
Luminous Flux @ Current/Temperature	7879 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	37.6 V

Part	Lens Type	Voltage - Forward (Vf) (Typ)	Temperature - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Current - Test	Color	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Configuration	Type	CCT (K)
Citizen Finedevice Co Ltd CLU731-1210C4-303M2K1	Flat	37.6 V	85 °C	80	28 mm	28 mm	2.3 A	1.75 A	Warm White	7699 lm	117 lm/W	13 mm	Square	Chip On Board (COB)
Citizen Finedevice Co Ltd CLU731-1210C4-353M2K1	Flat	37.6 V	85 °C	80	28 mm	28 mm	2.3 A	1.75 A	Warm White	7879 lm	120 lm/W	13 mm	Square	Chip On Board (COB)	3500 K
Citizen Finedevice Co Ltd CLU731-1210C4-273M2K1	Flat	37.6 V	85 °C	80	28 mm	28 mm	2.3 A	1.75 A	Warm White	7298 lm	111 lm/W	13 mm	Square	Chip On Board (COB)	2700 K
Citizen Finedevice Co Ltd CLU731-1210C4-403H5K2	Flat	37.6 V	85 °C	90	28 mm	28 mm	2.3 A	1.75 A	Neutral White	6634 lm	101 lm/W	13 mm	Square	Chip On Board (COB)	4000 K
Citizen Finedevice Co Ltd CLU731-1210C4-403M2K1	Flat	37.6 V	85 °C	80	28 mm	28 mm	2.3 A	1.75 A	Neutral White		122 lm/W	13 mm	Square	Chip On Board (COB)	4000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 14.42

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU731 White, Warm Square
