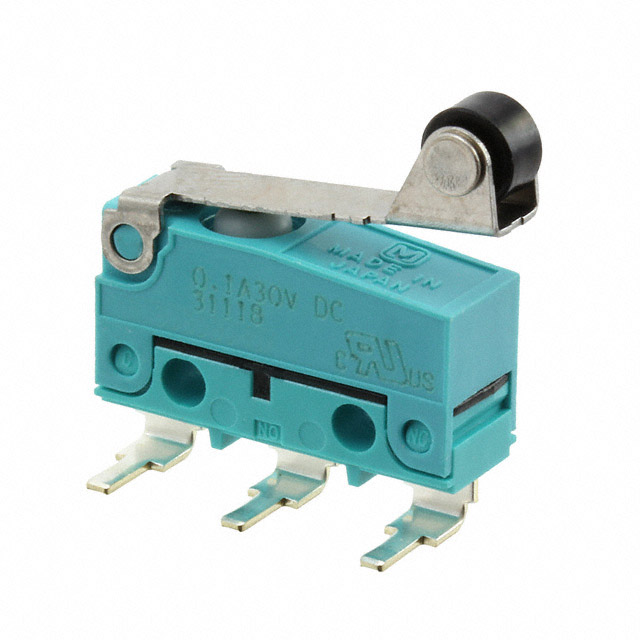

ABS5516549
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
ABS5516549
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.1A 30V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | ABS5516549 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 200000 Cycles |
| Features | Actuator Mounted Left Side |
| Ingress Protection | IP50 |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 60 gf |
| Operating Position [custom] | 0.571 in |
| Operating Position [custom] | 14.5 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.032 in |
| Overtravel | 0.81 mm |
| Pretravel | 0.1 in |
| Pretravel | 2.5 mm |
| Release Force | 4.079 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.30 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.54 | |||
| 50 | $ 3.37 | |||
| 100 | $ 2.87 | |||
| 300 | $ 2.61 | |||
| 500 | $ 2.45 | |||
| 1000 | $ 2.36 | |||
Description
General part information
ABS551 Series
Switch SPDT Through Hole, Right Angle
