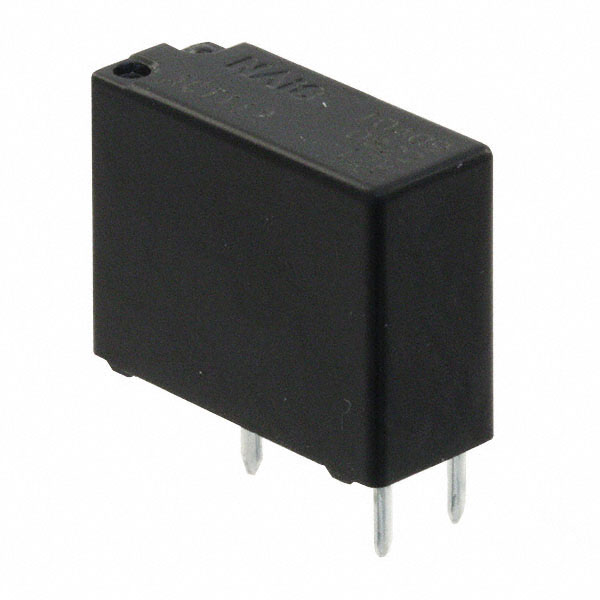

ACTP512
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPDTX2 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
ACTP512
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPDTX2 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACTP512 |
|---|---|
| Coil Current | 83.3 mA |
| Coil Resistance | 144 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) x 2 |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 30 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.52 | |
| 10 | $ 6.11 | |||
| 30 | $ 5.43 | |||
| 60 | $ 5.16 | |||
| 120 | $ 4.89 | |||
| 270 | $ 4.35 | |||
| 510 | $ 4.08 | |||
| 1020 | $ 3.80 | |||
Description
General part information
ACTP51 Series
RELAY AUTOMOTIVE SPDTX2 30A 12V
