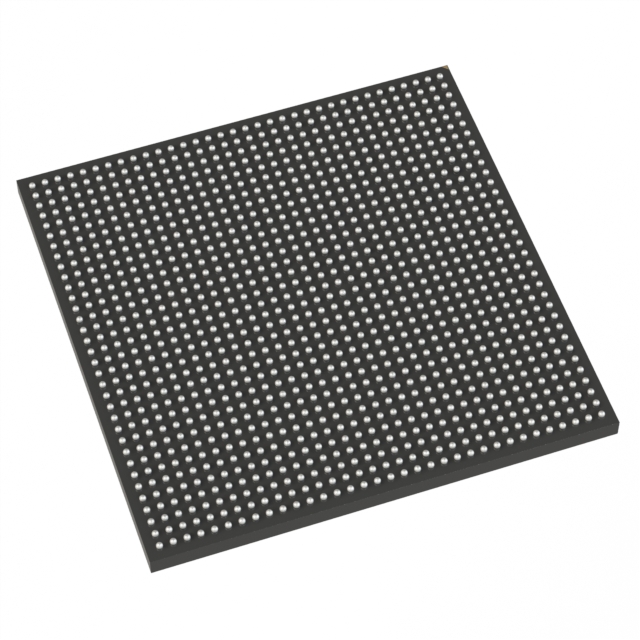

XC6VSX475T-2FFG1156C

Active

AMD

IC FPGA 600 I/O 1156FCBGA

Search across all available documentation for this part.

Active

AMD

IC FPGA 600 I/O 1156FCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC6VSX475T-2FFG1156C

Mounting Type	Surface Mount
Number of I/O	600
Number of LABs/CLBs	37200
Number of Logic Elements/Cells	476160
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	1156-BBGA, FCBGA
Supplier Device Package	1156-FCBGA (35x35)
Total RAM Bits	39223296 bits
Voltage - Supply [Max]	1.05 V
Voltage - Supply [Min]	0.95 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Total RAM Bits	Number of Logic Elements/Cells	Number of I/O	Number of LABs/CLBs	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Mounting Type	Supplier Device Package [x]	Supplier Device Package [y]
AMD XC6VSX475T-2FFG1156C	1.05 V	0.95 V	39223296 bits	476160	600	37200	0 °C	85 °C	1156-BBGA FCBGA	1156-FCBGA (35x35)	Surface Mount
AMD XC6VSX475T-2FFG1759E	1.05 V	0.95 V	39223296 bits	476160	840	37200	0 °C	100 °C	1759-BBGA FCBGA	1759-FCBGA	Surface Mount	42.5	42.5
AMD XC6VSX475T-2FF1759C	1.05 V	0.95 V	39223296 bits	476160	840	37200	0 °C	85 °C	1759-BBGA FCBGA	1759-FCBGA	Surface Mount	42.5	42.5
AMD XC6VSX475T-1FF1759I	1.05 V	0.95 V	39223296 bits	476160	840	37200	-40 C	100 °C	1759-BBGA FCBGA	1759-FCBGA	Surface Mount	42.5	42.5
AMD XC6VSX475T-L1FF1156I	0.97 V	0.91 V	39223296 bits	476160	600	37200	-40 C	100 °C	1156-BBGA FCBGA	1156-FCBGA (35x35)	Surface Mount
AMD XC6VSX475T-2FFG1759C	1.05 V	0.95 V	39223296 bits	476160	840	37200	0 °C	85 °C	1759-BBGA FCBGA	1759-FCBGA	Surface Mount	42.5	42.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15512.50

General part information

Virtex®-6 SXT Field Programmable Gate Array (FPGA) IC 600 39223296 476160 1156-BBGA, FCBGA
