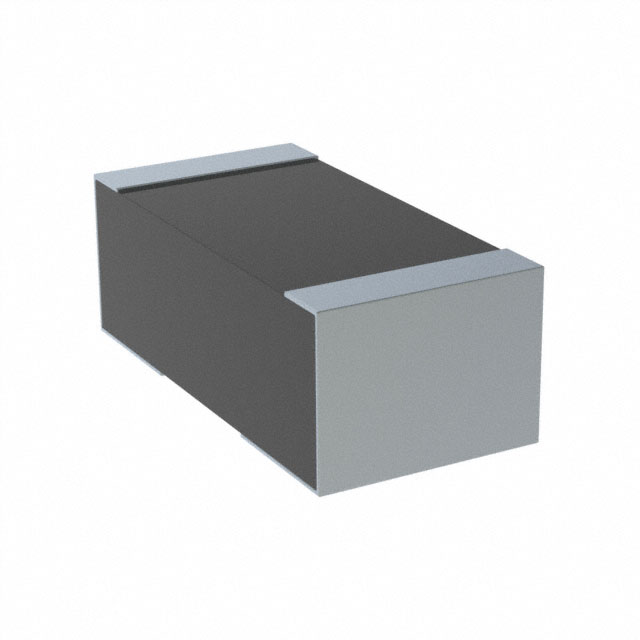

UR73D3ATTE20L0F
ActiveKOA Speer Electronics, Inc.
RES THICK FILM 2512 0.02 OHM 1% 1W ±250PPM/°C PAD SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UR73D3ATTE20L0F
ActiveKOA Speer Electronics, Inc.
RES THICK FILM 2512 0.02 OHM 1% 1W ±250PPM/°C PAD SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UR73D3ATTE20L0F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) [Max] [z] | 0.091 " |
| Height - Seated (Max) [Max] [z] | 2.3 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 1 W |
| Resistance | 0.02 Ohms |
| Size / Dimension [x] | 6.3 mm |
| Size / Dimension [x] | 0.248 in |
| Size / Dimension [y] | 0.122 in |
| Size / Dimension [y] | 3.1 mm |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 250 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.16 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 1.16 | ||
| 10 | $ 0.76 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 4000 | $ 0.26 | ||
| 8000 | $ 0.26 | |||
Description
General part information
UR73D3A Series
20 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Current Sense Thick Film
