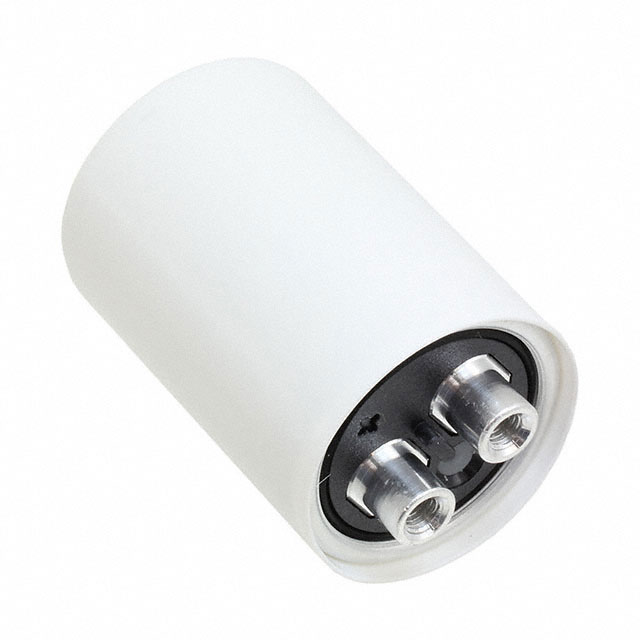

PEH200MA4470MU2

Active

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, PEH200 SERIES, 4700 F, 20%, 63 V, 35 MM, 0.032 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, PEH200 SERIES, 4700 F, 20%, 63 V, 35 MM, 0.032 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PEH200MA4470MU2

Applications	General Purpose
Capacitance	4700 µF
ESR (Equivalent Series Resistance)	32 mOhm
Height - Seated (Max) [Max] [z]	52.5 mm
Height - Seated (Max) [Max] [z]	2.067 in
Lead Spacing	13 mm
Lead Spacing	0.512 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ Low Frequency	9 A
Size / Dimension [diameter]	1.441 in
Size / Dimension [diameter]	36.6 mm
Tolerance	20 %
Voltage - Rated	63 V

Part	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Mounting Type	ESR (Equivalent Series Resistance)	Applications	Tolerance	Ripple Current @ Low Frequency
KEMET PEH200MA4470MU2	Polar	52.5 mm	2.067 in	4700 µF	85 °C	-40 °C	63 V	13 mm	0.512 in	10000 Hrs	1.441 in	36.6 mm	Radial Can - Screw Terminals	Chassis Mount	32 mOhm	General Purpose	20 %	9 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4700 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 32mOhm @ 100Hz 10000 Hrs @ 85°C
