Technical Specifications
Parameters and characteristics for this part
| Specification | 1986741 |
|---|---|
| Color | Blue |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 6 A |
| Features | Lever Actuated |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Positions Per Level | 1 |
| Voltage | 150 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FFKDS Series

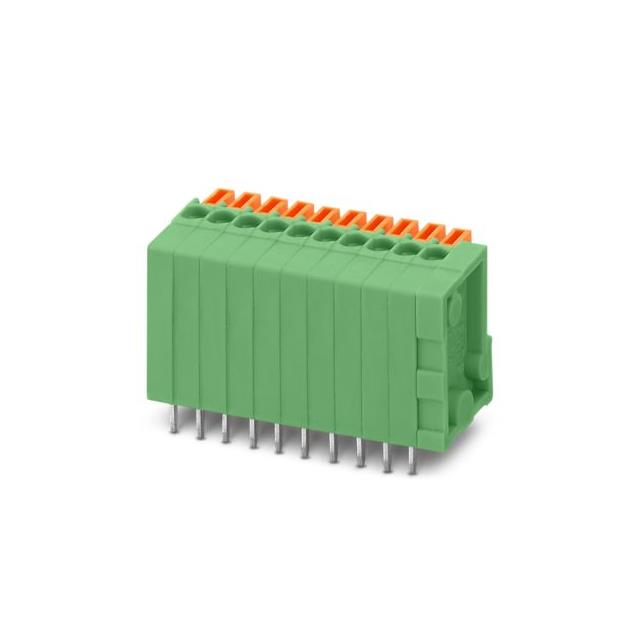

Fixed Terminal Blocks FFKDS/V-2,54 BU
