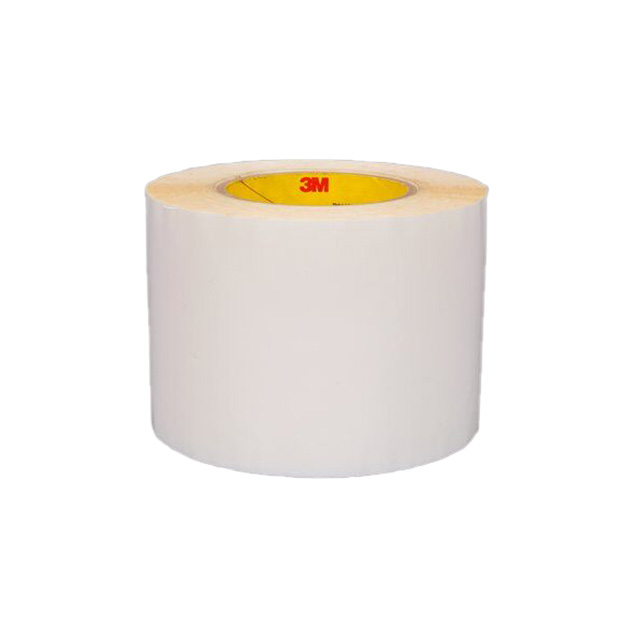

242NR01-4"X10YD

Unknown

3M (TC)

TAPE DAMPING POLYMER 4"X10YDS

Search across all available documentation for this part.

Unknown

3M (TC)

TAPE DAMPING POLYMER 4"X10YDS

Technical Specifications

Parameters and characteristics for this part

Specification	242NR01-4"X10YD

Adhesive	Polymer
Length [x]	30 ft
Length [x]	9.1 m
Length [x]	10 yds
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Damping Polymer
Temperature Range [Max]	65 °C
Temperature Range [Max]	65 °C
Temperature Range [Min]	0 °C
Temperature Range [Min]	0 °C
Thickness - Adhesive	1 mils
Thickness - Adhesive	0.025 mm
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	0.006 in
Thickness - Backing, Carrier	6 mils
Thickness - Backing, Carrier	0.152 mm
Usage	Vibration Damping
Width [x]	4 "
Width [x]	101.6 mm

Part	Usage	Shelf Life Start	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [y]	Width	Length	Length	Length	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range [Max]	Temperature Range [Max]	Length [x]	Length [x]	Length [x]	Width [x]	Width [x]
3M (TC) 242NR01-23.5"X180YD	Vibration Damping	Date of Manufacture	Damping Polymer	0.006 in	6 mils	0.152 mm	24 Months	16 °C 60 °F	27 °C 80 °F	23.5 "	596.9 mm	540 ft	180 yds	164.6 m	Polymer	1 mils	0.025 mm	0.001 in	65 °C	65 °C
3M (TC) 242NR01-4"X10YD	Vibration Damping	Date of Manufacture	Damping Polymer	0.006 in	6 mils	0.152 mm	24 Months	16 °C 60 °F	27 °C 80 °F						Polymer	1 mils	0.025 mm	0.001 in	65 °C	65 °C	30 ft	9.1 m	10 yds	4 "	101.6 mm
3M (TC) 242NR01-4.9"X180YD	Vibration Damping	Date of Manufacture	Damping Polymer	0.006 in	6 mils	0.152 mm	24 Months	16 °C 60 °F	27 °C 80 °F			540 ft	180 yds	164.6 m	Polymer	1 mils	0.025 mm	0.001 in	65 °C	65 °C				4.9 in	124.46 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Damping Polymer Tape Polymer Adhesive 4.00" (101.60mm) X 30' (9.1m) 10 yds

Technical documentation and resources

No documents available
