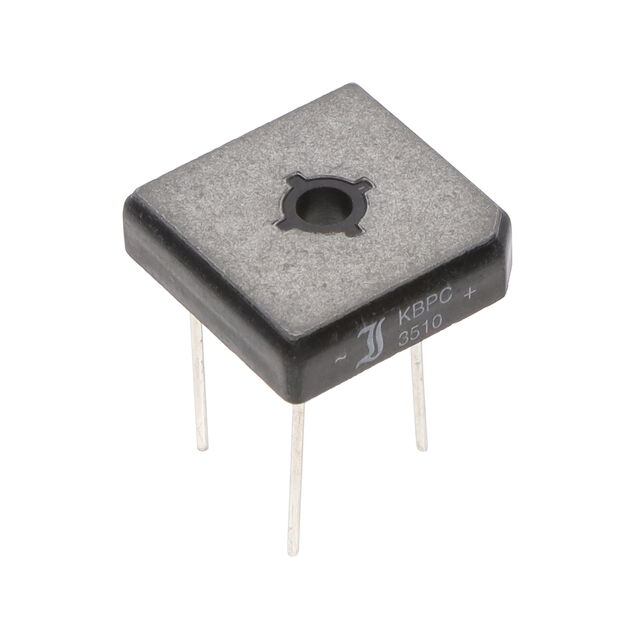

KBPC3510WP

Active

Diotec Semiconductor

BRIDGE RECT 1P 1KV 35A KBPC WP

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1P 1KV 35A KBPC WP

Technical Specifications

Parameters and characteristics for this part

Specification	KBPC3510WP

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	10 çA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-Square, KBPC WP
Supplier Device Package	KBPC WP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Technology	Current - Average Rectified (Io)	Supplier Device Package	Diode Type	Package / Case	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type
Diotec Semiconductor KBPC3510WP	Standard	35 A	KBPC WP	Single Phase	4-Square KBPC WP	1000 V	150 °C	-50 °C	1.1 V	10 çA	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole KBPC WP
