OA254AN-11-1TBXC

Active

Orion Fans

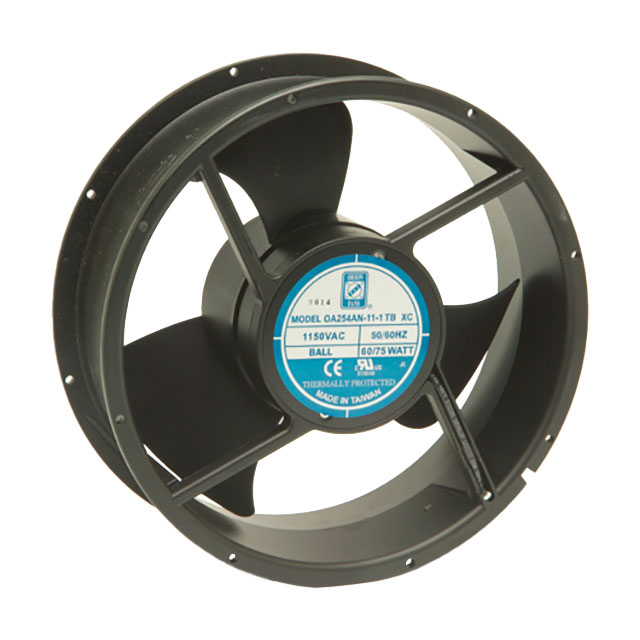

AC AXIAL FAN, 115V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 850 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOA254AN Labe Memo Technical Data Sheet EN +1

OA254AN-11-1TBXC

Active

Orion Fans

AC AXIAL FAN, 115V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 850 CFM

Deep-Dive with AI

DocumentsOA254AN Labe Memo Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA254AN-11-1TBXC

Air Flow	23.8 mł/min
Air Flow	850 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	69 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	75 W
RPM	2700 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	194.3 Pa
Static Pressure	0.78 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	80 VAC
Weight	5.4 lbs
Weight	2.4 kg
Width [y]	89 mm

OA254AN Series

Part	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features	Fan Type	Weight	Weight	Noise	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Width [y]	Size / Dimension [diameter]	Size / Dimension	Voltage - Rated	Lifetime @ Temp.	Material - Frame	Static Pressure	Static Pressure	Approval Agency	Termination	Power (Watts)	RPM	Material - Blade
Orion Fans OA254AN-11-2TB	16.8 mł/min	600 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	55 dB	80 VAC	130 VAC	Ball	89 mm	10 in	Round	115 VAC	60000 Hrs	Aluminum	112.1 Pa	0.45 in H2O	CE cURus TUV UR	2 Terminals	45 W	2000 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-11-3TB	8.96 m³/min	320 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	48 dB	80 VAC	130 VAC	Ball	89 mm	10 in	Round	115 VAC	60000 Hrs	Aluminum	34.9 Pa	0.14 in H2O	CE cURus TUV UR	2 Terminals	32 W	1100 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-11-1TBXC	23.8 mł/min	850 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	69 dB	80 VAC	130 VAC	Ball	89 mm	10 in	Round	115 VAC	60000 Hrs	Aluminum	194.3 Pa	0.78 in H2O	CE cURus TUV UR	2 Terminals	75 W	2700 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-22-1TB	19.6 m³/min	700 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	65 dB	160 VAC	260 VAC	Ball	89 mm	10 in	Round	230 VAC	60000 Hrs	Aluminum	132.3 Pa	0.531 in H2O	CE cURus TUV UR	2 Terminals	70 W	2200 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-11-1WBXC	23.8 mł/min	850 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	69 dB	80 VAC	130 VAC	Ball	89 mm	10 in	Round	115 VAC	60000 Hrs	Aluminum	194.3 Pa	0.78 in H2O	CE cURus TUV UR	2 Wire Leads	75 W	2700 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-11-1TB	19.6 m³/min	700 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	65 dB	80 VAC	130 VAC	Ball	89 mm	10 in	Round	115 VAC	60000 Hrs	Aluminum	132.3 Pa	0.531 in H2O	CE cURus TUV UR	2 Terminals	70 W	2200 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-22-1TBXC	23.8 mł/min	850 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	69 dB	160 VAC	260 VAC	Ball	89 mm	10 in	Round	230 VAC	60000 Hrs	Aluminum	194.3 Pa	0.78 in H2O	CE cURus TUV UR	2 Terminals	75 W	2700 RPM	Polybutylene Terephthalate (PBT)
Orion Fans OA254AN-22-1WBXC	23.8 mł/min	850 CFM	80 C	80 °C	-20 °C	-20 C	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	5.4 lbs	2.4 kg	69 dB	160 VAC	260 VAC	Ball	89 mm	10 in	Round	230 VAC	60000 Hrs	Aluminum	194.3 Pa	0.78 in H2O	CE cURus TUV UR	2 Wire Leads	75 W	2700 RPM	Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 70.46
Newark	Each	1	$ 91.39
		5	$ 89.11
		10	$ 86.83
		25	$ 82.26

Description

General part information

OA254AN Series

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 850.0 CFM (23.80m³/min) 2 Terminals
