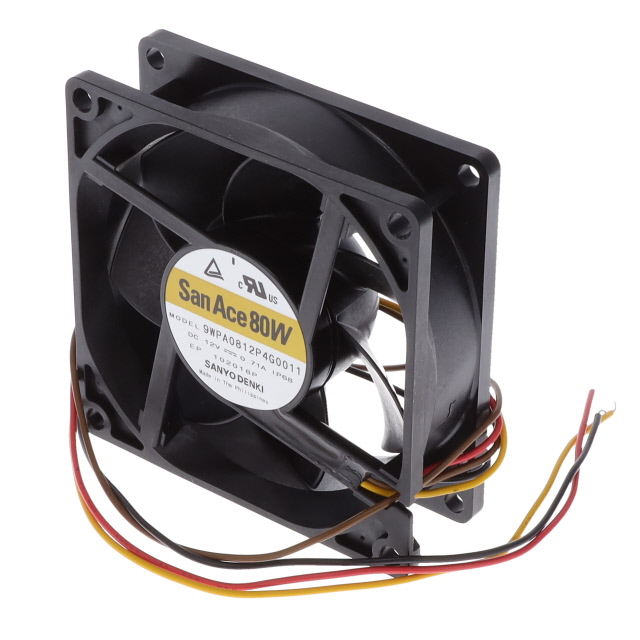

9WPA0812P4G0011
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25.2MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9WPA0812P4G0011
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25.2MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WPA0812P4G0011 |
|---|---|
| Air Flow | 2.29 m³/min |
| Air Flow | 81.8 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.71 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 54 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 8.52 W |
| RPM | 8250 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 209.2 Pa |
| Static Pressure | 0.84 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Width [x] | 25.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 59.78 | |
| 10 | $ 54.09 | |||
| 40 | $ 50.53 | |||
| 80 | $ 49.82 | |||
| 120 | $ 45.90 | |||
Description
General part information
9WPA0812 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 81.8 CFM (2.29m³/min) 4 Wire Leads
