A16104-12

Active

Laird Technologies - Thermal Materials

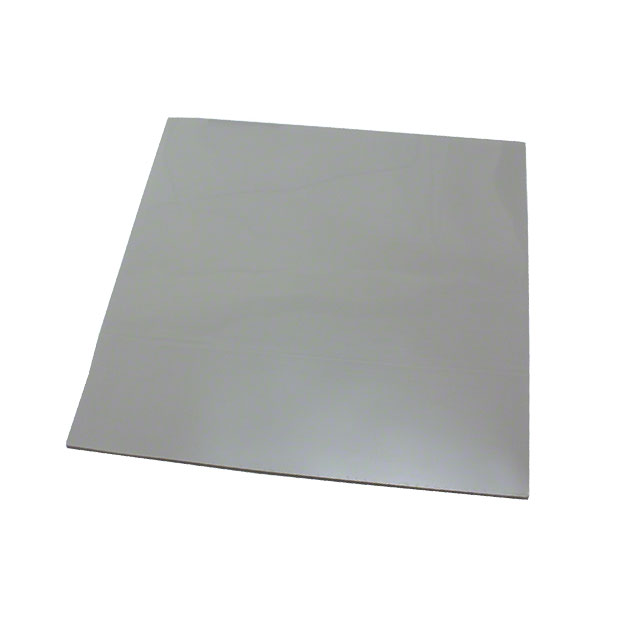

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Interface Solutions Datasheet

A16104-12

Active

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

DocumentsThermal Interface Solutions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A16104-12

Adhesive	Tacky - Both Sides
Color	Gray
Outline [x]	228.6 mm
Outline [y]	228.6 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Thermal Conductivity	3 W/m-K
Thickness	0.12 in
Thickness	3.05 mm
Type	Gap Filler Pad, Sheet

A16104 Series

Part	Outline [x]	Outline [y]	Color	Adhesive	Shelf Life Start	Thickness [custom]	Thickness	Shelf Life	Type	Thermal Conductivity	Shape	Thickness	Thickness [custom]
Laird Technologies - Thermal Materials A16104-19	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment	0.19 in	4.83 mm	24 Months	Gap Filler Pad Sheet	3 W/m-K	Square
Laird Technologies - Thermal Materials A16104-16	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		4.06 mm	24 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.16 in
Laird Technologies - Thermal Materials A16104-04	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		1.016 mm	24 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.04 in
Laird Technologies - Thermal Materials A16104-10	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		2.54 mm	12 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.1 in
Laird Technologies - Thermal Materials A16104-20	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		200 mils	12 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.2 in
Laird Technologies - Thermal Materials A16104-01	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment	0.01 in		24 Months	Gap Filler Pad Sheet	3 W/m-K	Square		0.254 mm
Laird Technologies - Thermal Materials A16104-07	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		1.778 mm	12 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.07 in
Laird Technologies - Thermal Materials A16104-08	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		80 mils	24 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.08 "
Laird Technologies - Thermal Materials A16104-09	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		2.286 mm	12 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.09 in
Laird Technologies - Thermal Materials A16104-12	228.6 mm	228.6 mm	Gray	Tacky - Both Sides	Date of Shipment		3.05 mm	24 Months	Gap Filler Pad Sheet	3 W/m-K	Square	0.12 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.54
		10	$ 89.57
		25	$ 83.60
		50	$ 80.61
		100	$ 77.62

Description

General part information

A16104 Series

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides

Documents

Technical documentation and resources

Thermal Interface Solutions

Datasheet
