M505012F

Active

Sensata-Crydom

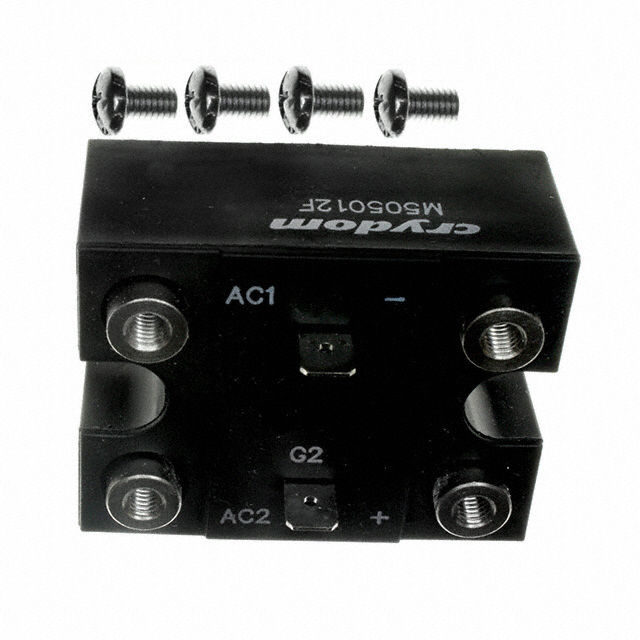

MODULE POWER 50A 600V SCR DIODE

Search across all available documentation for this part.

Active

Sensata-Crydom

MODULE POWER 50A 600V SCR DIODE

Technical Specifications

Parameters and characteristics for this part

Specification	M505012F

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	600 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Off State	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Off State	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure
Sensata-Crydom M505012F	-40 °C	125 ¯C	Module	600 V	2	2	150 mA	Chassis Mount	600 A	Bridge Single Phase - SCRs/Diodes (Layout 1)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 600 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
