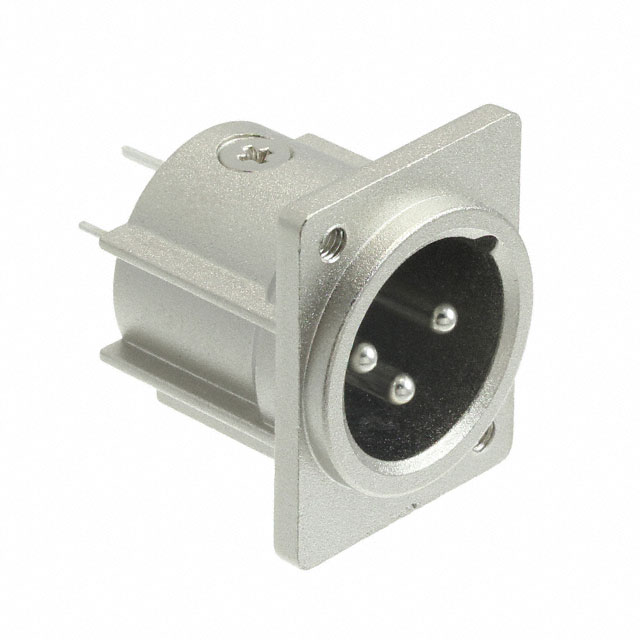

HA16RM-3PE(76)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 3POS SILVER SLDR

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 3POS SILVER SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	HA16RM-3PE(76)

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum or Zinc Alloy
Shell Size - Insert	16
Shielding	Shielded
Termination	Solder
Voltage Rating	130 VAC, 180 VDC

Part	Orientation	Material Flammability Rating	Contact Finish - Mating	Shell Material	Mounting Type	Current Rating (Amps)	Shielding	Fastening Type	Termination	Shell Finish	Primary Material	Voltage Rating	Connector Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Color	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Applications	Features
Hirose Electric USA, Inc. HA16RM-3PE(76)	Keyed	UL94 V-0	Silver	Aluminum or Zinc Alloy	Panel Mount Through Hole	3 A	Shielded	Push-Pull	Solder	Nickel	Metal	130 VAC 180 VDC	Male Pins Receptacle	Flange	70 °C	-25 °C	Copper Alloy	Silver	16
Hirose Electric USA, Inc. HA16RM-3PB(76)	Keyed	UL94 V-0	Silver	Aluminum Alloy	Panel Mount Right Angle Through Hole	3 A	Shielded	Push-Pull	Solder	Nickel	Metal	130 VAC 180 VDC	Male Pins Receptacle	Flange	70 °C	-25 °C	Brass	Silver	16	78.7 µin	2 µm	Nylon Polyamide (PA)	Industrial
Hirose Electric USA, Inc. HA16RM-3P(76)	Keyed	UL94 V-0	Silver	Aluminum or Zinc Alloy		15 A	Shielded	Push-Pull		Nickel	Metal	130 VAC 180 VDC	Male Pins Receptacle	Flange	70 °C	-25 °C	Copper Alloy	Silver	16					Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
