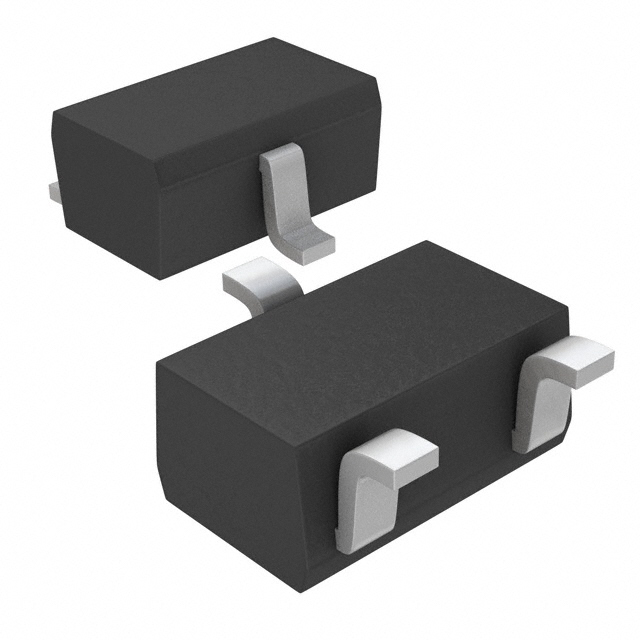

2SA1576U3T106R

Active

Rohm Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR,

Search across all available documentation for this part.

Active

Rohm Semiconductor

SMALL SIGNAL BIPOLAR TRANSISTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1576U3T106R

Current - Collector (Ic) (Max) [Max]	150 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	140 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-70, SOT-323
Power - Max [Max]	200 mW
Supplier Device Package	UMT3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Frequency - Transition	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Supplier Device Package	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce
Rohm Semiconductor 2SA1576AT106Q	140 MHz	200 mW	100 nA	120	150 mA	Surface Mount	50 V	150 °C	500 mV	PNP	UMT3	SC-70 SOT-323
Rohm Semiconductor 2SA1576U3T106R	140 MHz	200 mW	100 nA	120	150 mA	Surface Mount	50 V	150 °C	500 mV	PNP	UMT3	SC-70 SOT-323
Rohm Semiconductor 2SA1576U3T106S	140 MHz	200 mW	100 nA	120	150 mA	Surface Mount	50 V	150 °C	500 mV	PNP	UMT3	SC-70 SOT-323
Rohm Semiconductor 2SA1576AT106R	140 MHz	200 mW	100 nA		150 mA	Surface Mount	50 V	150 °C	500 mV	PNP	UMT3	SC-70 SOT-323	180 hFE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 50 V 150 mA 140MHz 200 mW Surface Mount UMT3
