65-00-CIP35-0200

Active

Parker Chomerics

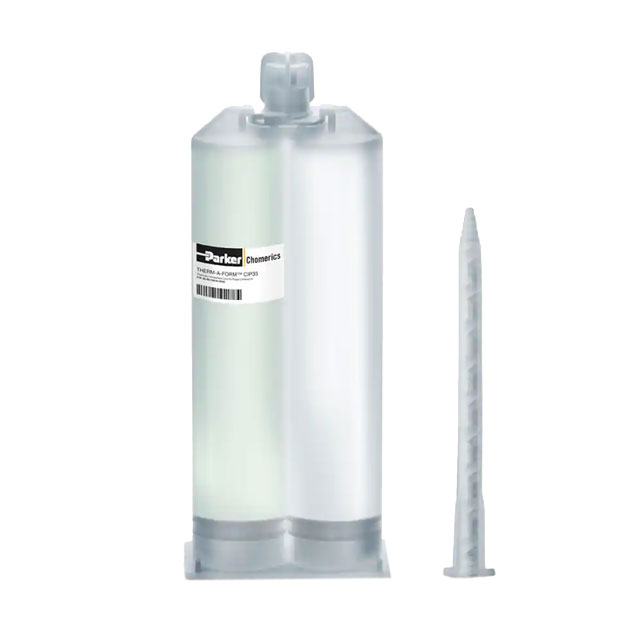

THERM-A-FORM CIP35 POTTING 200CC

Search across all available documentation for this part.

Active

Parker Chomerics

THERM-A-FORM CIP35 POTTING 200CC

Technical Specifications

Parameters and characteristics for this part

Specification	65-00-CIP35-0200

Color	Green
Features	Low Outgassing (ASTM E595)
Material Flammability Rating	UL94 V-0
Shelf Life	12 Months
Size / Dimension	200cc Cartridge
Thermal Conductivity	3.5 W/m-K
Type	Silicone Compound, 2 Part
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Min]	-55 °C
Usable Temperature Range [Min]	-67 °F

Part	Features	Thermal Conductivity	Usable Temperature Range [Max]	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Color	Size / Dimension	Type	Material Flammability Rating	Shelf Life
Parker Chomerics 65-00-CIP35-0045	Low Outgassing (ASTM E595)	3.5 W/m-K	200 °C	200 °C	-55 °C	-67 °F	Green	45cc Cartridge	Silicone Compound 2 Part	UL94 V-0	12 Months
Parker Chomerics 65-00-CIP35-0200	Low Outgassing (ASTM E595)	3.5 W/m-K	200 °C	200 °C	-55 °C	-67 °F	Green	200cc Cartridge	Silicone Compound 2 Part	UL94 V-0	12 Months
