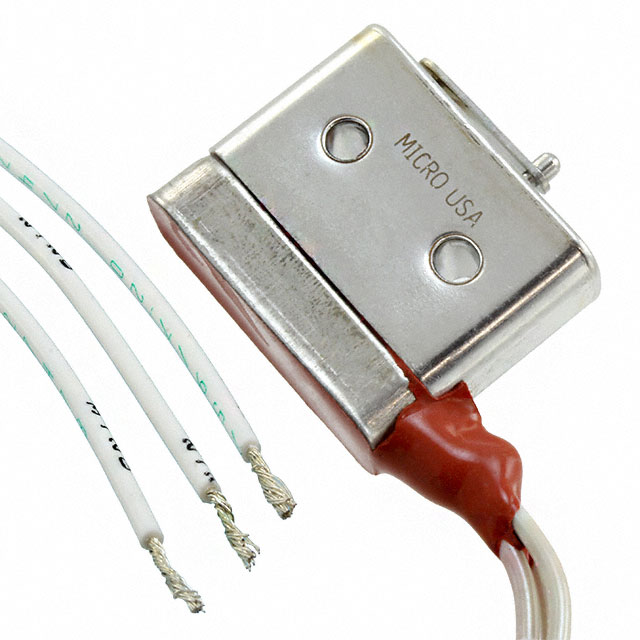

16HM4

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 115V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Pretravel	Pretravel	Overtravel	Overtravel	Operating Force	Operating Position	Operating Position	Mounting Type	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Differential Travel	Differential Travel	Switch Function	Release Force	Features	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions 16HM4	-65 ░C	260 ░C	Lever Straight	SPDT	0.03 in	0.8 mm	0.076 mm	0.003 in	198 gf	8.4 mm	0.33 in	Chassis Mount	Wire Leads	1 A 3 A	28 V	0.15 mm	0.006 in	On-Mom	28 gf	Sealed - Hermetically	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 655.30
