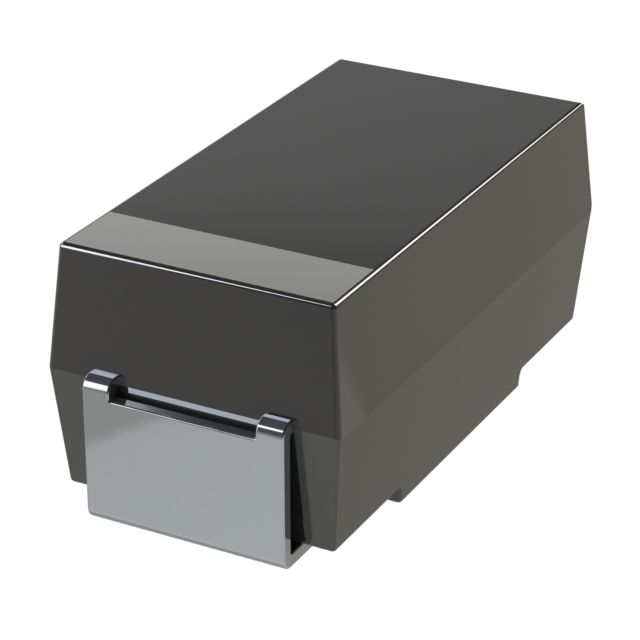

TCJC156M035R0200

Active

Kyocera AVX

TANTALUM POLYMER CAPACITOR, 15 ΜF, ± 20%, 35 V, C, 0.2 OHM, 2312 [6032 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPolymer, Tantalum, Niobium Oxide Catalog Solid Tantalum & OxiCap Material Handling Guide +1

TCJC156M035R0200

Active

Kyocera AVX

TANTALUM POLYMER CAPACITOR, 15 ΜF, ± 20%, 35 V, C, 0.2 OHM, 2312 [6032 METRIC]

Deep-Dive with AI

DocumentsPolymer, Tantalum, Niobium Oxide Catalog Solid Tantalum & OxiCap Material Handling Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCJC156M035R0200

Capacitance	15 µF
ESR (Equivalent Series Resistance)	200 mOhm
Features	General Purpose
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	20 %
Type	Molded
Voltage - Rated	35 V

TCJC Series

Part	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Capacitance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Package / Case	Package / Case	Tolerance	Type
Kyocera AVX TCJC107M006R0100E	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	6.3 V	100 µF	2000 Hrs	100 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC155M050S0300	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	50 VDC	1.5 µF	2000 Hrs	300 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC475M063R0200E	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	63 V	4.7 µF	2000 Hrs	200 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC475M063R0200	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	63 V	4.7 µF	2000 Hrs	200 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC225M063R0200E	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	63 V	2.2 µF	2000 Hrs	200 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC156M035R0200	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	35 V	15 µF	2000 Hrs	200 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC225M063R0200	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	63 V	2.2 µF	2000 Hrs	200 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC336M010R0100	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	125 °C	-55 °C	10 V	33 ÁF	2000 Hrs	100 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC155M063R0300E	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	63 V	1.5 µF	2000 Hrs	300 mOhm	6032 Metric	2312	20 %	Molded
Kyocera AVX TCJC155M063R0300	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	105 ░C	-55 °C	63 V	1.5 µF	2000 Hrs	300 mOhm	6032 Metric	2312	20 %	Molded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.31
		10	$ 1.78
		50	$ 1.63
		100	$ 1.35
	Digi-Reel®	1	$ 2.31
		10	$ 1.78
		50	$ 1.63
		100	$ 1.35
	Tape & Reel (TR)	500	$ 1.20
Newark	Each (Supplied on Cut Tape)	250	$ 2.28

Description

General part information

TCJC Series

15 µF Molded Tantalum Polymer Capacitor 35 V 2312 (6032 Metric) 200mOhm @ 100kHz
