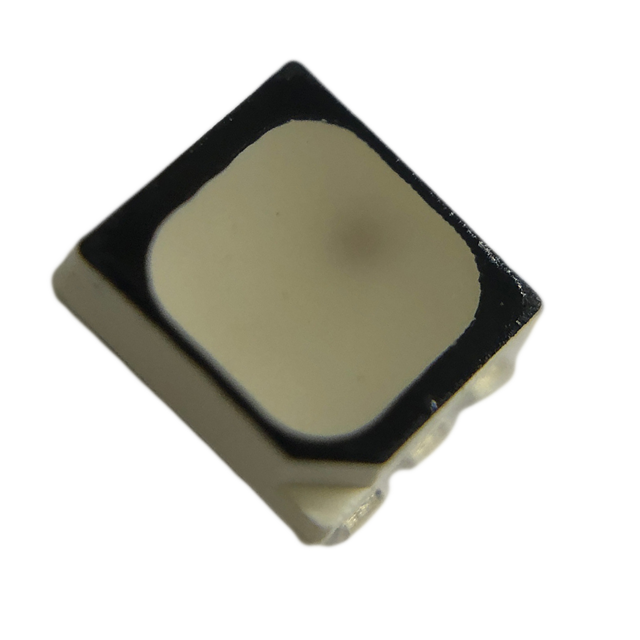

QBLP680-RGB1
ActiveQT Brightek (QTB)
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP680-RGB1
ActiveQT Brightek (QTB)
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP680-RGB1 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1.8 mm |
| Lens Color | White |
| Lens Size | 2.5 mm |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 900 mcd |
| Millicandela Rating [custom] | 350 mcd |
| Millicandela Rating [custom] | 2300 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 6-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2.9 V, 3 V |
| Wavelength - Dominant [custom] | 470 nm, 525 nm, 620 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.63 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| Tape & Reel (TR) | 1000 | $ 0.35 | ||
| 2000 | $ 0.34 | |||
| 5000 | $ 0.33 | |||
| 10000 | $ 0.32 | |||
| 25000 | $ 0.32 | |||
Description
General part information
QBLP680 Series
Red, Green, Blue (RGB) 620nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.9V Green, 3V Blue 6-SMD, J-Lead
