WM8998ECS/R

Obsolete

Cirrus Logic Inc.

IC CODEC AUD HUB HI-FI 117WCSP

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC CODEC AUD HUB HI-FI 117WCSP

Technical Specifications

Parameters and characteristics for this part

Specification	WM8998ECS/R

Data Interface	SLIMbus
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

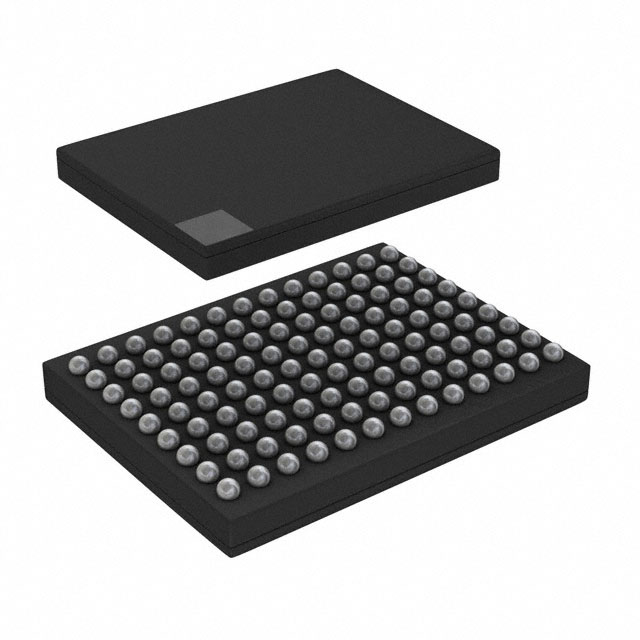

Package / Case	WLCSP, 117-UFBGA
S/N Ratio, ADCs / DACs (db) Typ [custom]	96 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	122 db
Sigma Delta	False
Supplier Device Package	117-WCSP (5.35x4.09)
Type	Audio
Voltage - Supply, Analog [Max]	1.9 V
Voltage - Supply, Analog [Min]	1.7 V

Part	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Data Interface	Sigma Delta	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Supplier Device Package	Package / Case	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]
Cirrus Logic Inc. WM8998ECS/R	96 db	122 db	SLIMbus		1.9 V	1.7 V	117-WCSP (5.35x4.09)	117-UFBGA WLCSP	Surface Mount	Audio	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Audio Interface SLIMbus 117-WCSP (5.35x4.09)
