9613-1523-002
ActiveRadiall USA, Inc.
SMA F RA BHD CR 2/50S
Deep-Dive with AI
Search across all available documentation for this part.
9613-1523-002
ActiveRadiall USA, Inc.
SMA F RA BHD CR 2/50S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9613-1523-002 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | 196 |
| Cable Group | RG-178 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.59 | |
| 10 | $ 50.88 | |||
| 25 | $ 46.22 | |||
| 50 | $ 43.08 | |||
| 100 | $ 40.23 | |||
| 250 | $ 36.88 | |||
Description
General part information
9613-1523 Series

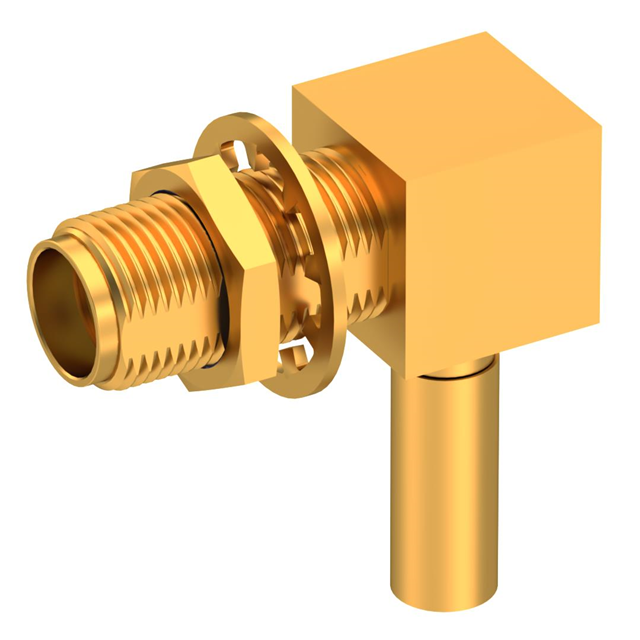

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Crimp
