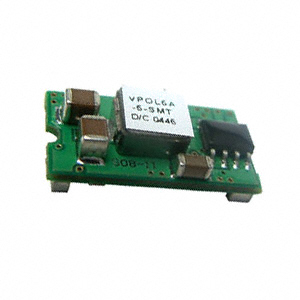

VPOL5A-5-SMT-TR
CUI Inc.
DC DC CONVERTER 0.8-3.6V 18W
Deep-Dive with AI
Search across all available documentation for this part.
VPOL5A-5-SMT-TR
CUI Inc.
DC DC CONVERTER 0.8-3.6V 18W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VPOL5A-5-SMT-TR |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 94 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SMD Module |
| Power (Watts) | 18 W |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [z] | 0.24 " |
| Size / Dimension [z] | 6.1 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 27.57 | |
| Digi-Reel® | 1 | $ 27.57 | ||
| Tape & Reel (TR) | 500 | $ 22.57 | ||
Description
General part information
VPOL5A Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 5A 3V - 5.5V Input
Documents
Technical documentation and resources
No documents available
