K160-1050-00

Active

Jacob GmbH

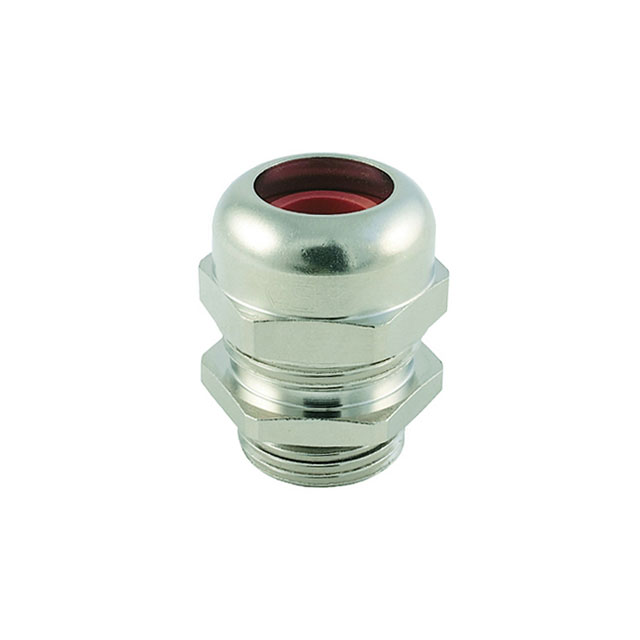

CABLE GLAND 31-42MM M50 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 31-42MM M50 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	K160-1050-00

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP69, IP67, IP66
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	42 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.654 in
Outside Cable Diameter (Min) [Min] [diameter]	1.22 in
Outside Cable Diameter (Min) [Min] [diameter]	31 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M50x1.5
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Color	Includes	Material	Type	Thread Size	Ingress Protection
Jacob GmbH K160-1050-00	100 °C	-60 °C	1.22 in	31 mm	42 mm	1.654 in	10 mm	0.394 in	Silver	O-Ring Seal	Brass Nickel Plated	Cable Gland	M50x1.5	IP66 IP67 IP69

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 44.55

General part information

Cable Gland Brass, Nickel Plated M50x1.5 Silver
