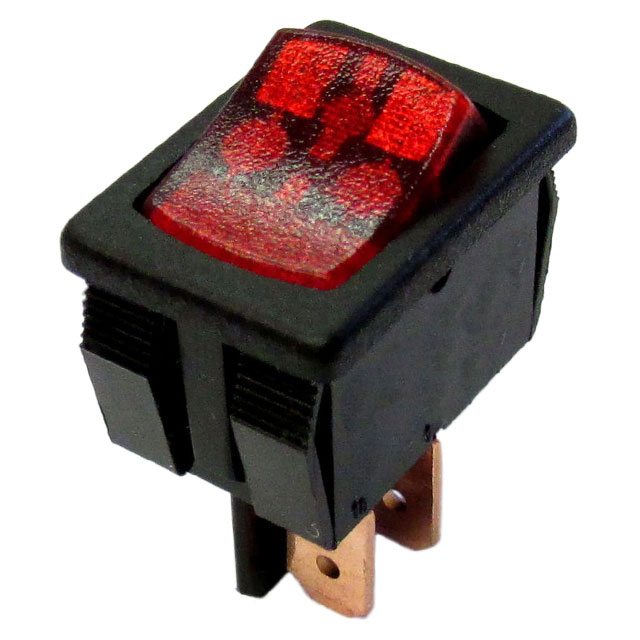

GRL-4011-0015

Active

CW Industries

SWITCH ROCKER SPST 8A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPST 8A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRL-4011-0015

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	8 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	28 VAC/DC
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Termination Style	Actuator Marking	Mounting Type	Illumination Voltage (Nominal)	Circuit	Switch Function	Actuator Type	Voltage Rating - AC	Illumination Type, Color	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Current Rating (Amps)	Mechanical Life	Features	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]
CW Industries GRL-4011-0001	Quick Connect - 0.187" (4.7mm)	No Marking	Panel Mount Snap-In	125 VAC	SPST	On-Off	Concave (Curved) - Illuminated	125 V	Neon Red	12.9 mm	Rectangular	19.2 mm	Red	8 A	25000 Steps	Terminal Barriers	25000 Steps	-20 C	105 ░C
CW Industries GRL-4011-0015	Quick Connect - 0.187" (4.7mm)	No Marking	Panel Mount Snap-In	28 VAC/DC	SPST	On-Off	Concave (Curved) - Illuminated	125 V	Incandescent Red	12.9 mm	Rectangular	19.2 mm	Red	8 A	25000 Steps	Terminal Barriers	25000 Steps	-20 C	105 ░C
CW Industries GRL-4011-0000	Quick Connect - 0.187" (4.7mm)	No Marking	Panel Mount Snap-In	125 VAC	SPST	On-Off	Concave (Curved) - Illuminated	125 V	Neon Red	12.9 mm	Rectangular	19.2 mm	Red	13 A	25000 Steps	Terminal Barriers	25000 Steps	-20 C	105 ░C
CW Industries GRL-4011-1600	Quick Connect - 0.187" (4.7mm)	No Marking	Panel Mount Snap-In	125 VAC	SPST	On-Off	Concave (Curved) - Illuminated	125 V	Neon Red	12.9 mm	Rectangular	19.2 mm	Red	16 A	100000 Cycles		25000 Steps	-20 C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.57

General part information

Rocker Switch SPST 8A (AC) 125 V Panel Mount, Snap-In
